AMERICAN WISE POWER TECH.

X

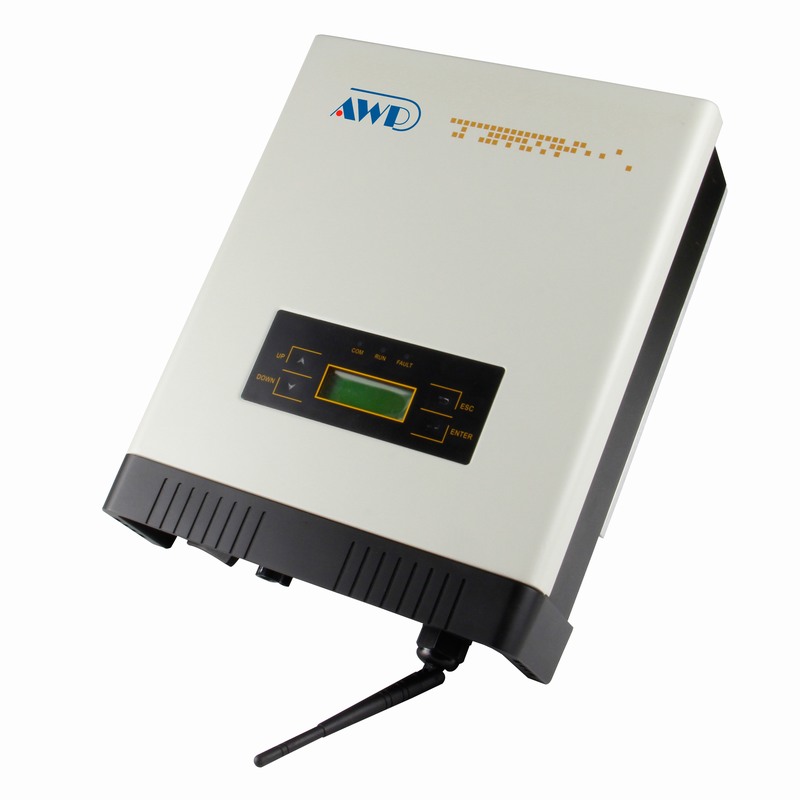

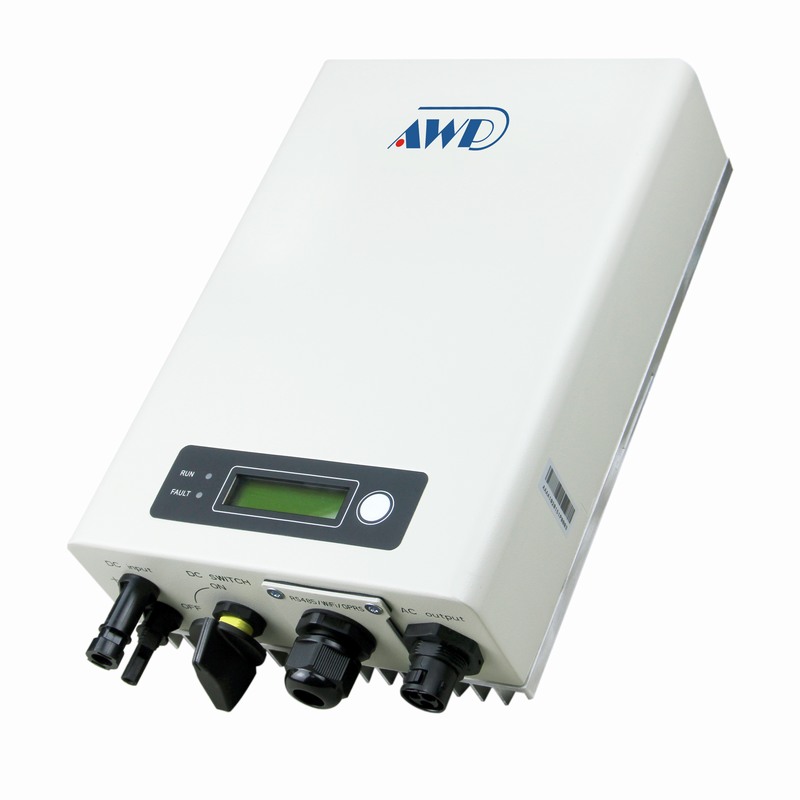

PHX 1K - 1K5-TL

  • Transformerless design, high efficiency (Max. 95.5%, Euro 94.2%)
  • High MPPT accuracy (>99.9%)
  • Wide DC input range (60 ~ 300 Vdc), compatible with 2 to 7 panel installation
  • Easy to wire, install and operate
  • IP65 design, suitable for indoor and outdoor installation
  • 5 years warranty (10 ~ 25 years optional)

      X

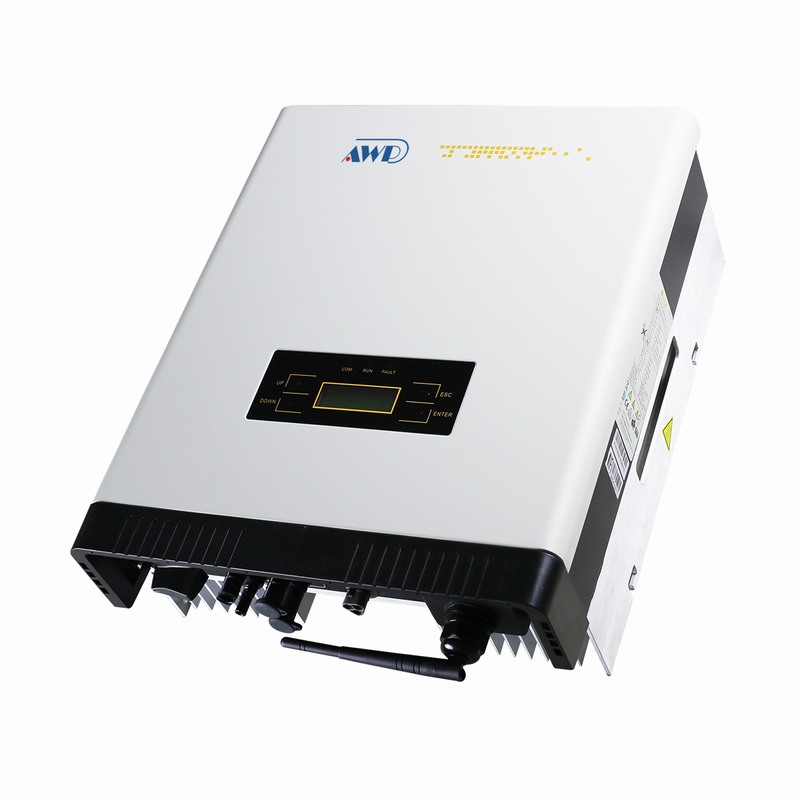

      PHX 1K - 1K5 - 2K-TL

      Features
      • Standard 10 years warranty, 5 ~ 25 years optional
      • Built-in GPRS as option
      • Built-in Wifi as option
      • External Inductor
      • Smaller and lighter, 2 KW only 9.6kg
      • High performance DSP for algorithm control
      • VDE-AR-N 4105 certification
      • New topology design
      • Multi-button touch interface
      • LCD screen visible at night
      • Have anti-shading function
      Advantages
      • Longer life cycle
      • Plug and play
      • Free monitoring fee for data transmission
      • Very lower internal temperature
      • Easy transportation and installation
      • Faster CPU speed
      • Adjustable active and reactive power
      • Maximum conversion efficiency up to 97.7%, Euro up to 96.9%
      • User friendly operation
      • Real-time data readable at night
      • Suitable to complex installation environment

          X

          PHX 2K5 - 3K-TL

          Features
          • Standard 10 years warranty, 5 ~ 25 years optional
          • Built-in GPRS as option
          • Built-in Wifi as option
          • External Inductor
          • Smaller and lighter, 3kW-TL2 weighs only 9.9kg
          • High performance DSP for algorithm control
          • VDE-AR-N 4105 certification
          • New topology design
          • Multi-button touch interface
          • LCD screen visible at night
          • Have anti-shading function
          Advantages
          • Longer life cycle
          • Plug and play
          • Free monitoring fee for data transmission
          • Very lower internal temperature
          • Easy transportation and installation
          • Faster CPU speed
          • Adjustable active and reactive power
          • Maximum conversion efficiency up to 97.7%, Euro up to 96.9%
          • User friendly operation
          • Real-time data readable at night
          • Suitable to complex installation environment

              X

              PHX 3K - 4K - 5K-TL

              • Built-in GPRS
              • Built-in Wifi
              • External inductance favorable for heat dissipation
              • Smaller and lighter, only 22 kg
              • High performance DSP for algorithm control
              • VDE-AR-N 4105 certification
              • New topology design, maximum efficiency 98.2%, Europe efficiency 97.5%
              • Dual MPPT design
              • Waterproof and dustproof (IP65) design
              • Convenient and rapid operation with touch-key design
              • Control module with bi-directional power supply of DC and AC
              • Anti-shading function, suitable for complicated installation environment

                  X

                  PHX 5K - 6K - 8K-TL

                  • Built-in GPRS (optional)
                  • Built-in Wifi (optional)
                  • External inductance favorable for heat dissipation
                  • Smaller and lighter, only 22 kg
                  • High performance DSP for algorithm control
                  • VDE-AR-N 4105 certification
                  • New topology design, maximum efficiency 98.2%, Europe efficiency 97.5%
                  • Dual MPPT design
                  • Waterproof and dustproof (IP65) design
                  • Convenient and rapid operation with touch-key design
                  • Control module with bi-directional power supply of DC and AC
                  • Anti-shading function, suitable for complicated installation environment

                      X

                      PHX 13K - 15K - 17K - 20K-TL

                      • Economy, high efficiency, high reliability and long life circle
                      • Smaller and lighter, 20KTL weights only 45 kg
                      • External inductor, reducing machine temperature and extending device lifetime
                      • LCD screen with four buttons, easy to operate, user friendly
                      • Ethernet, Wi-Fi or GPRS data communication technology, one power station needs only one monitoring equipment.
                      • All-round remote control for users, installers, distributors and manufacturer, real-time · operation status accessible, quick response against fault
                      • VDE-AR-N 4105 and BDEW certified, adjustable active and reactive power, with LVRT function
                      • Optional built-in lightning protection module, no need for external lightning protection box
                      • With anti-shading function, suitable to all kinds of complicated installation environment

                          X

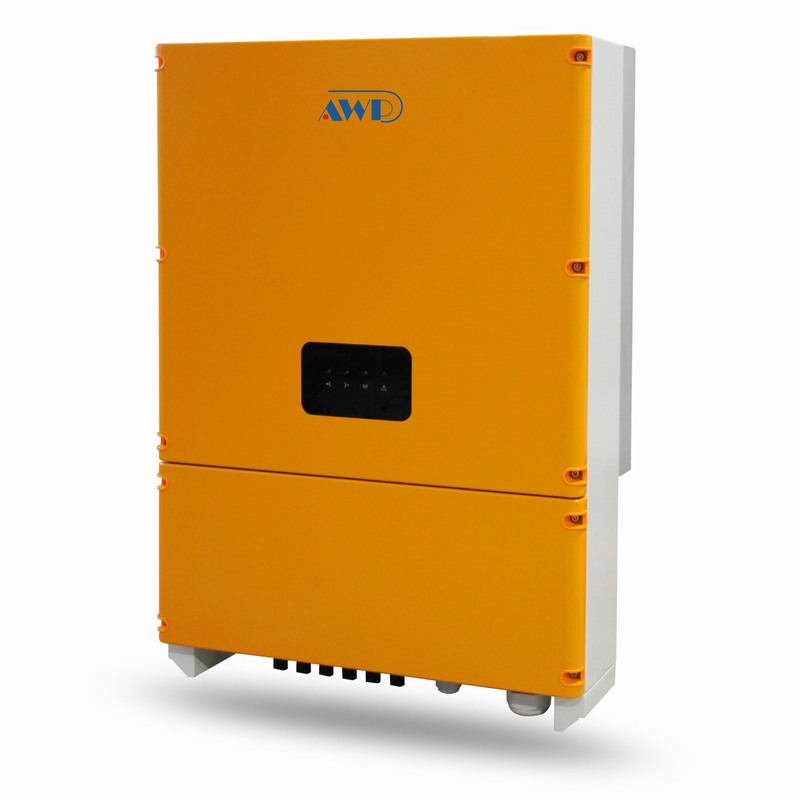

                          PHX 33K - 40K-TL

                          More Energy Generated
                          • Transformerless design, maximum conversion efficiency up to 98.6%, Europe efficiency up to 98.4%
                          • Three MPP inputs
                          • Gain maximum energy generated by shadowed PV cells.
                          • Wide MPPT voltage range (320 ~ 900V), longer daily power generation time
                          • Intelligent MPPT algorithm
                          • The maximum power point tracking is not affected by abrupt change of illumination
                          • Accurate identification technology of power change
                          • Static MPPT is stable and accurate
                          • Wide operating temperature range (– 25 °C ~ + 60 °C), continuous power generation at full load in high temperature
                          High Reliability
                          • Long lifetime design of film capacitor, 25 years of designed service life for complete machine
                          • Natural heat dissipation, waterproof, dust resistance, salt fog resistance and corrosion resistance
                          • Active+passive islanding protection
                          • Multilayer, step-by-step overcurrent, overvoltage, overtemperature and short-circuit protections for software and hardware
                          • 6 strings fault monitoring with rapid positioning
                          Advanced Control Technology
                          • Double modulation of three level SPWM and SVPWM, natural and smooth switch
                          • Adaptive control, adapting to harsh weak power grids environment
                          • Harmonic current compensation, THD < 1%
                          • Supporting active and reactive power grid dispatch and SVG function at night
                          • LVRT function
                          Friendly and Flexible
                          • Status display with LED indicators, concise interface
                          • Built-in DC SPD and fuse, no need of DC combiner box, reducing cost for users
                          • DC shut-off circuit breaker for safe and convenient maintenance operating
                          • IP 65 protection level for outdoor use
                          • Wall mounting design, one-step forming of aluminum shell
                          • Standard RS485 / APP / GPRS / Wi-Fi / Bluetooth communications; Optional PLC viewing the system operation information

                              X

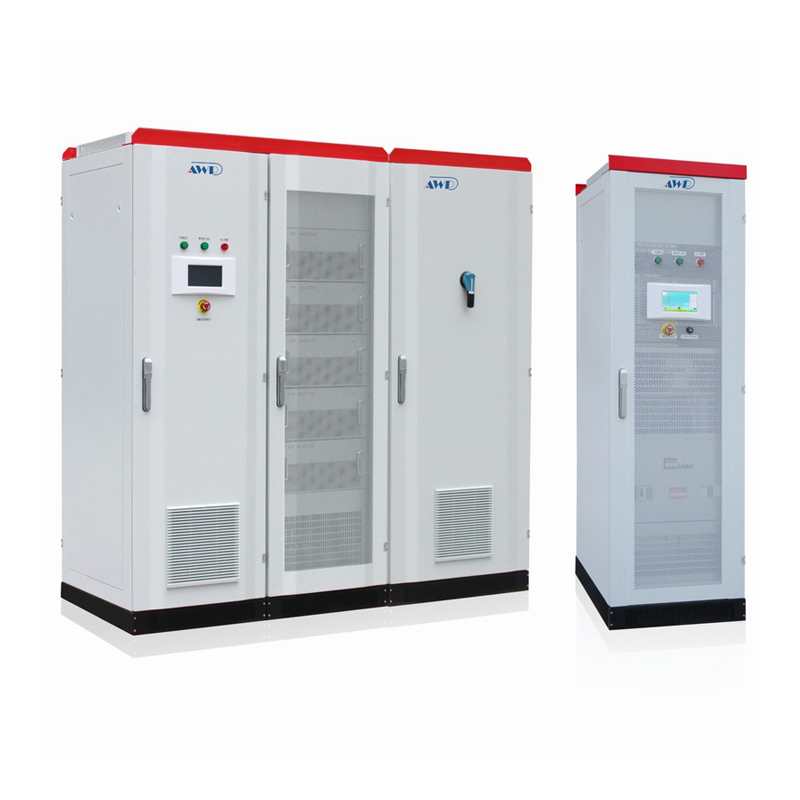

                              PHX 100K - 250K

                              PHX 100K-MT / 250K-MT / 250K-TF
                              PV Grid-connected Inverter adopt modular three-level SVPMW technology. They are featured with high frequency, high power density, small footprint, optional various communications and built-in transformer design. They are ideal for distributed PV grid-connected power stations.

                              Features
                              • Advanced modular three-level SVPMW technology
                              • Maximum efficiency up to 98.5 (w/o transformer)
                              • Wide MPPT range (500V ~ 850V) with effective MPPT algorithms
                              • Modular design, front accessible maintenance with less time (less than 10 min)
                              • Auto separate failed module from the system to improve reliability
                              • Low voltage, ZVRT (Zero voltage ride through) test
                              • Advanced Anti-islanding technology
                              • Independent air dusts design to adapt to dust environment
                              • Smart startup& hibernation function
                              • Night SVG function, responding to the grid dispatching order whole day.
                              • Adjustable active power, power factor range 0.9 (leading) to 0.9 (lagging).
                              • TÜV, CE, CQC certification

                                  X

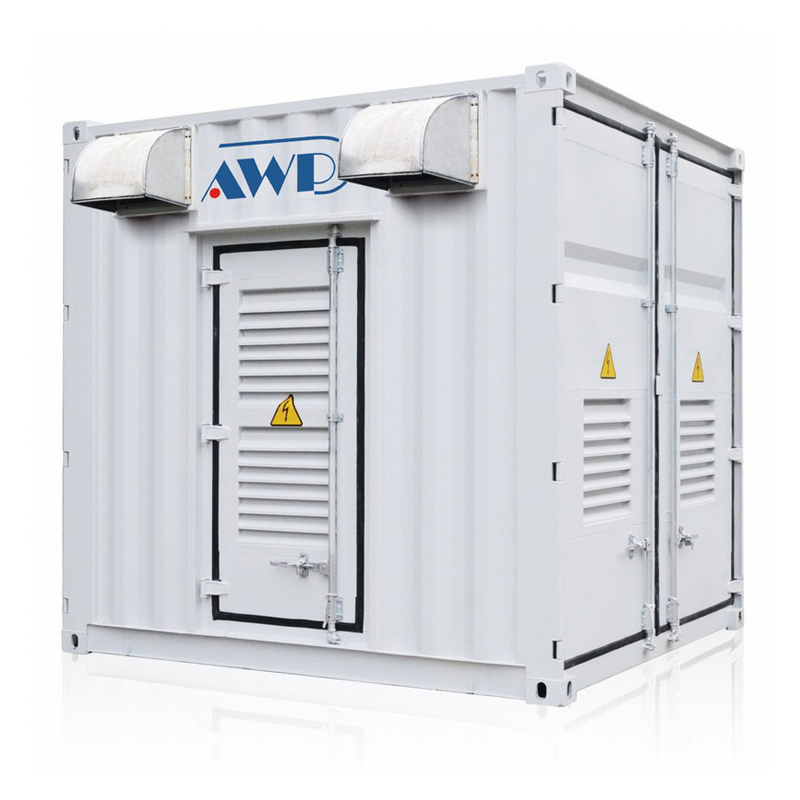

                                  PHX 1MW

                                  More Energy Generated
                                  • Centralized-Distributed design, maximum conversion efficiency up to 99%
                                  • Maximum 64 MPPT combiner box accessible for improving generated energy
                                  • Dual-channel parallel configuration and single-channel operating for small power to promote generated energy
                                  • Fan frequency conversion control to reduce consumption and promote generated energy
                                  • Quick front accessible maintenance, low MTTR
                                  High Reliability
                                  • Long lifetime design of film capacitor, 25 years of service life for complete machine
                                  • Active+passive islanding protection
                                  • Multilayer, step-by-step overcurrent, overvoltage, overtemperature and short-circuit protections for software and hardware
                                  • Separated protection for each DC input to improve system reliability
                                  Advanced Control Technology
                                  • Advanced SVPWM control technology
                                  • Adaptive control, adapting to harsh weak power grids environment
                                  • Harmonic current compensation, THD < 3%
                                  • Supporting active and reactive power grid dispatch and SVG function at night
                                  • LVRT function

                                      X

                                      PAT 500W - 3000W

                                      • High reliability: adopt high-speed DSP control system, combine advanced SPWM technology and high-speed power MOS
                                      • Operating mode selectable: energy storage priority or power supply priority
                                      • No PID attenuation damage for solar panels to ensure their service life
                                      • Flexible battery management system: auto switch three-stage charging mode shortens recharge time; wide charging current is selectable according to configured battery; flexible DOD (Depth of discharge) is settable to meet more applications
                                      • AC input with effective online synchronous stabilizing technology
                                      • No-load auto shutdown function (optional)
                                      • Automatic frequency selection
                                      • Auto Power-On/Off function; real-time monitoring, test and intelligent startup / shutdown by rs232 or usb interface communicating with pc; remote monitoring by optional SNMP networks

                                          X

                                          PAT 3KW - 8KW

                                          • Independent MPPT control microprocessor system
                                          • Independent inverter control microprocessor system featured with high-speed online stabilization
                                          • Advanced SPWM technology, high-speed power MOS
                                          • MPPT control using PWM technology enable to bear the maximum PV open-circuit voltage
                                          • Operating mode selectable: PV priority or utility power priority
                                          • Charging current selectable according to configured battery
                                          • AC input with effective online synchronous stabilization technology
                                          • Auto-tracking mains phase to ensure that inverter output voltage has same phase with utility voltage, reducing transfer time and peak surge
                                          • No-load auto shutdown function (optional)
                                          • Automatic frequency selection
                                          • Auto Power-On/Off function; real-time monitoring, test and intelligent startup / shutdown by RS232 or USB interface communicating with PC; remote monitoring by optional SNMP networks

                                              X

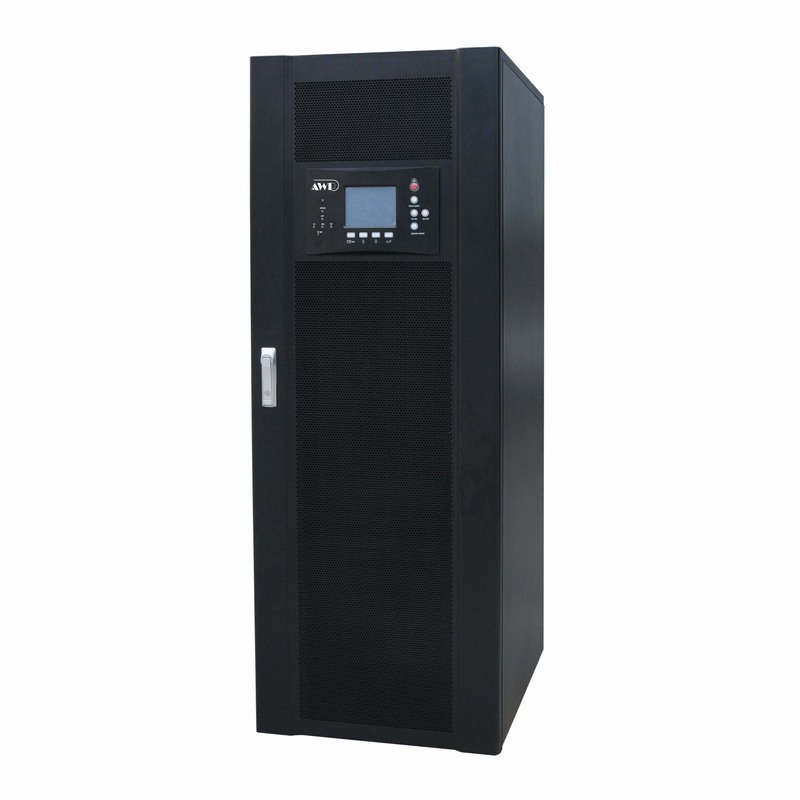

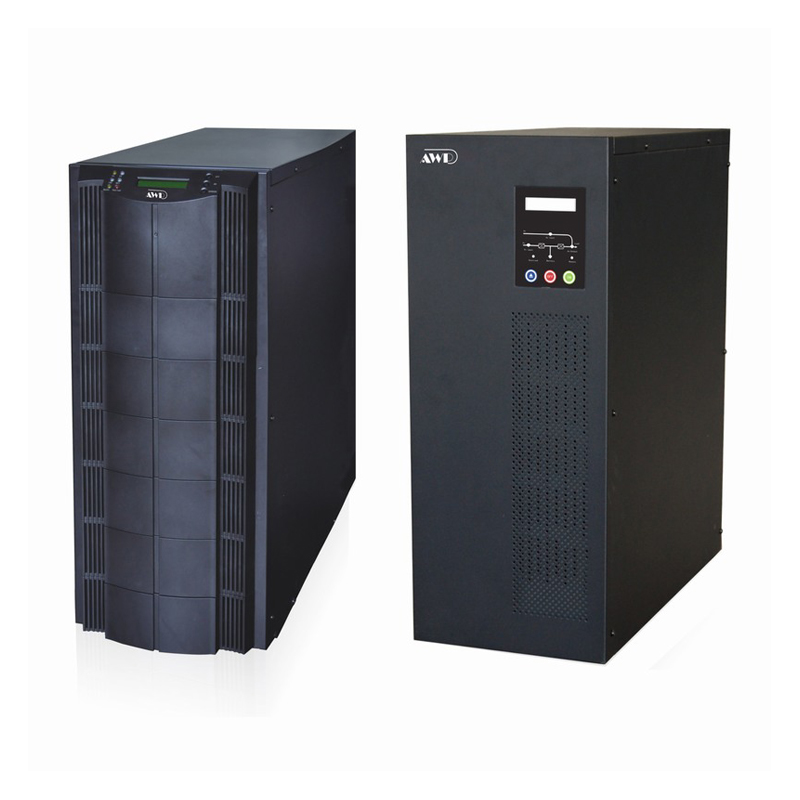

                                              PAT 10KW - 120KW

                                              This Off-Grid solar system is available in 10KVA ~ 120KVA models with DSP digital control technology, it is combined with pulse-width modulation (SVPWM), disturbance MPPT control and multi-level control technolgy to enable the stysem to track the maimum power of solar panels fast. Its secure power supply feature provides good quality power with regualted voltage and frequency to the loads, and it is featured with engergy storage and staggering power consumption as well. It is an ideal inverter for medium-sized or large-scale residential, commercial and industrial PV applications which are off the gird, such as village, farm, factory, office building and islands etc.

                                              Features
                                              • High-speed DSP digital control
                                              • Full-bridge invertert control techonology, providing secure power supply in the event of three phase 100% unbalanced loads
                                              • Multi-string PV connected
                                              • Inbuilt AC rectifier and MPPT control modules, configured battery parameters by operating interface, self-regulation for charging voltage and current
                                              • Hot-swap MPPT modules for easy maintenance and power expansion
                                              • Auto access MPP tracking states, be most probable to use PV energy in priority
                                              • Intelligent AC and PV complementation power supply function to extend the battery life.
                                              • Using multicore control technology and auto MPP trackers, auto-start AC rectifier enable PV and AC source to supply power to the loads at the same time in the event of insufficient PV, which reduces battery discharge times and entend the battery life.
                                              • Intelligent staggering power consumption function
                                              • Standard RS232, RS485 and optional SNMP communication port
                                              • Multiple remote control: startup, shutdown, abnormal clearance, EPO, battery test and remote alarm port
                                              • Staggering energy storage and power generation

                                                  X

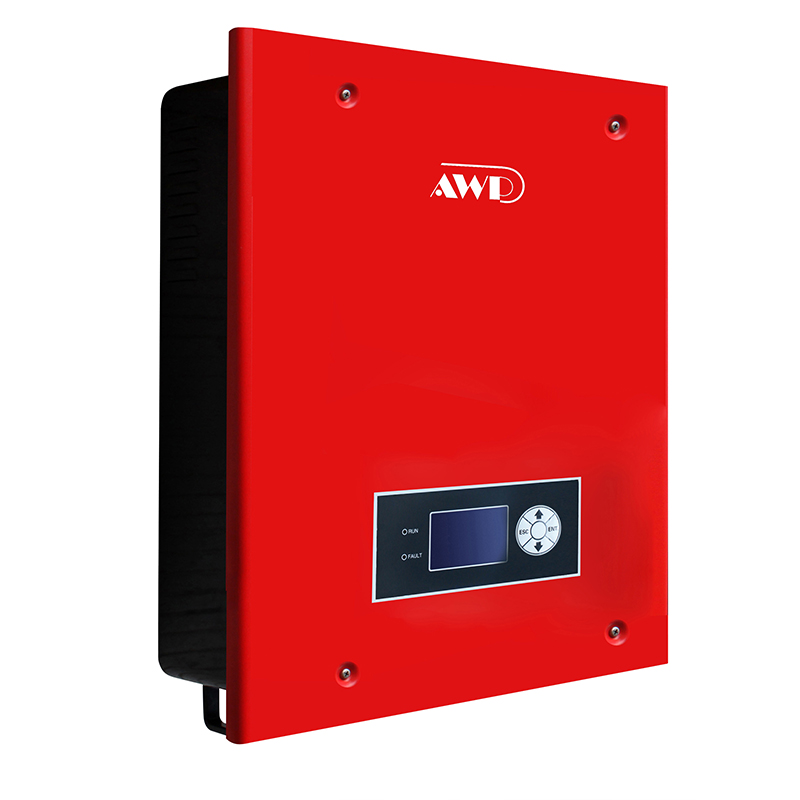

                                                  PHS 1KW - 3KW

                                                  • PV energy combined with flexible energy storage systems: enable households to store surplus electricity generated by solar panel array, and power not being utilised can be exported to the mains grid.
                                                  • Advanced MPPT algorithm
                                                  • Built-in transfomer to ensure electric safety
                                                  • Intelligent battery management, configurable charging current
                                                  • Effective protections: overload, short circuit, overdischarge, overcharge, battery reverse polarity, PV reverse polarity protections
                                                  • No PID attenuation damage for solar panels to ensure its service life
                                                  • Unique ECO mode, daily consumption less than 1% at no-load standby
                                                  • Staggering energy storage and power generation

                                                      X

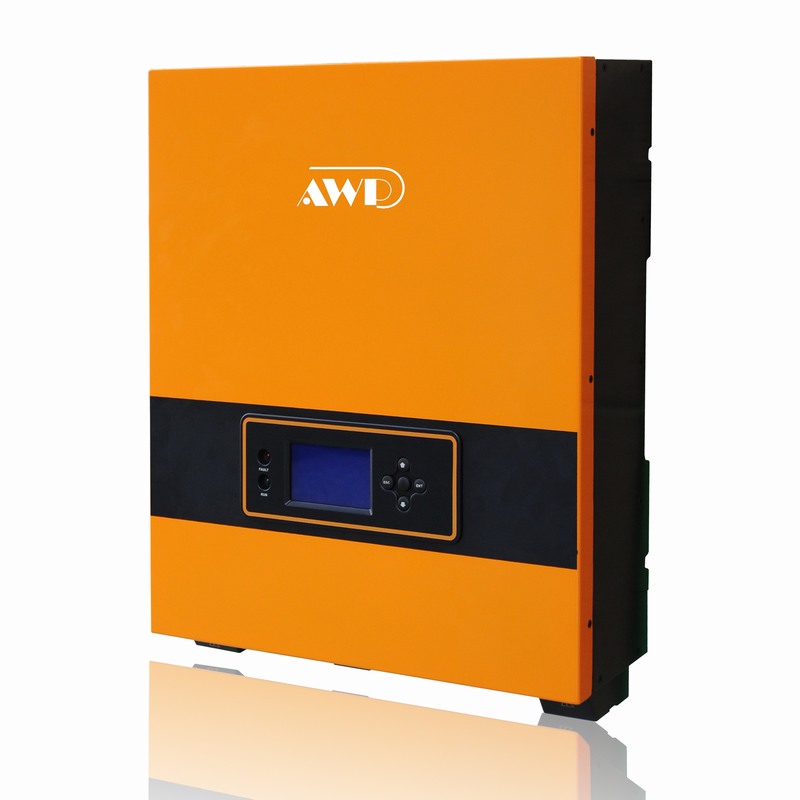

                                                      PHS 3KTL

                                                      Hybrid (Bi-direction) Solar Inverter is PV energy combined with energy storage systems. It utilizes solar power, AC utility and battery power to ensure continuous power supply, and users can store the unused energy produced during the day by PV system in the battery and use it whenever they needs, even at night, it helps increase self-consumption and achieve greater energy self-sufficiency.
