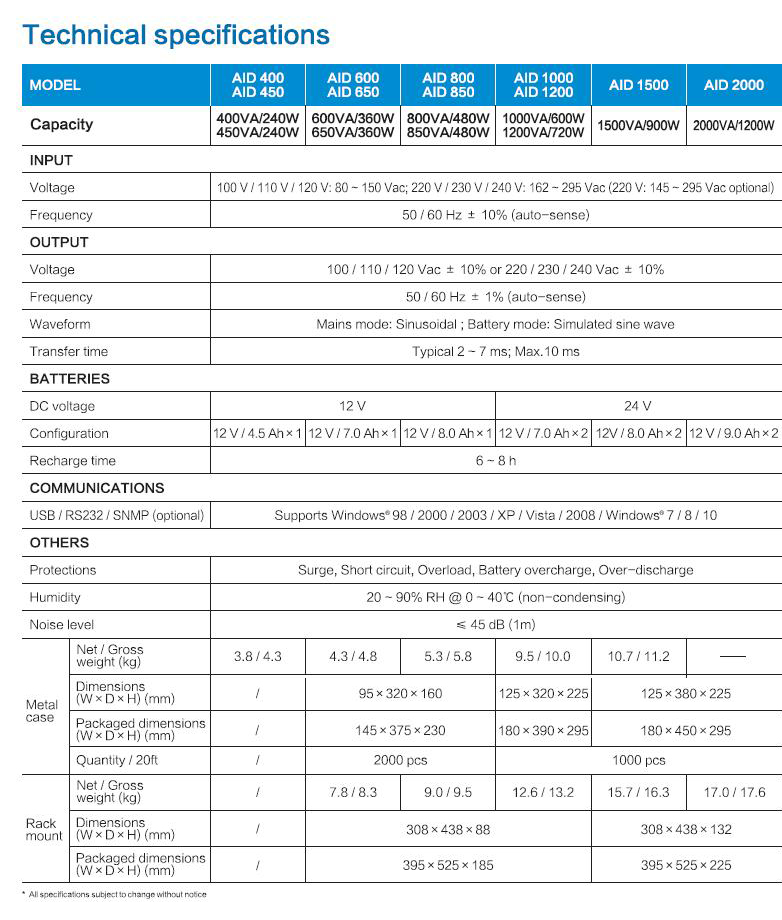

Features

Microprocessor-based digital control technology

Faster and more accurate processing of data

Wide Input Voltage Range

Aide UPS is capable of handling a wide input voltage range, supplying clean power in extreme circumstances. It has excellent voltage regulation ability with an ultra-wide input voltage range from 80 ~ 150 Vac or 145 ~ 295 Vac.

Built-in AVR

Aide UPS provides stable power to connected devices in unstable power conditions.

It has built-in automatic voltage regulator, safety running in a wide voltage range, reduces the using of battery, prolongs the life of battery, especially suitable for power fluctuations or poor power areas, supplying clean power in extreme circumstances.

Surge protection

Built-in precisely controlled power protection circuit, eliminate the interference of low voltage and surge, thus protecting the equipment against voltage spikes.

Short-circuit and overload protection

A short circuit is an abnormal connection between two nodes of an electrical circuit, and can cause huge damage to the UPS and any equipment attached to it. Aide circuit protection device will protect against potential short circuit damage, overheating, fire or even explosions. Aide is also equipped with overload protection, meaning that the fuse will automatically be triggered when a load exceeds its value. Both protection devices ensure the safety and reliability of the UPS and any equipment that is attached to it.

Auto sensing frequency

Aide UPS uses frequency adaptive technology. When UPS connect to mains with frequency 50HZ or 60HZ, the system will detect the frequency of mains power, and the output frequency will be the same as the detected frequency even when the mains power fails.

High-speed synchronous conversion

Aide system can automatically track the mains phase, to ensure that the inverter output voltage and mains voltage are identical, decrease the transfer time and surge voltage, minimize the interference to electrical equipment.

Cold start capability

In the absence of any AC input, the cold start function allows users to start UPS with batteries, and without any damage to them or the circuits. Users can easily configure the UPS, even if no AC input is available.

Intelligent battery management

· Aide series UPS adopt interactive Design. When mains power is connected, Aide system will automatically charging the battery, even the UPS is OFF, to ensure the battery have enough power. When the mains power fails, Aide system will automatically switch to battery mode to provide sufficient runtime for the load saving data and safety shutdown.

· Aide UPS also be featured with battery temperature compensation to extend the battery life, three-stage charging to shorten recharge time and battery overcharge / over-discharge protections as well.

Intelligent power ON/OFF

· When the mains power is restored after discharge of the batteries, Aide UPS will automatically restart and self-diagnose to ensure the functionality of the UPS system and batteries.

· Aide system can detect load and automatically shut down in the no-load state (Optional). When the load is less than 5%, the system detects that it is under idling/no-load state, it will automatically shut down in about one minute, reduce losses, effectively extending the life of batteries.

User friendly LED and LCD display

The user friendly LED display, which is situated on the front panel of Aide UPS, provides instantaneous information. Aide LCD model have a backlit LCD display for users to observe the UPS status information, load and battery performance.

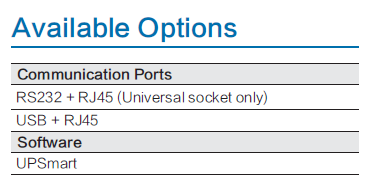

Advanced multi-platform communications

RS232 / USB communication port (Optional).

What do we get from using management software

·  More customized functions.

·  Settable battery discharge and low-voltage test. Through this function users can easily see batteries in good or bad condition.

·  Timing boot/shutdown for UPS is available.

·  Unattended Safe Shutdown by software. AWP Software is able to intelligently save the data and automatically shut down the sever or computer when a power failure occurs. This software allows the UPS to instruct the operating systems to close down a PC when it is running unattended. Users can set the parameters with which to schedule when the computer or server should shutdown, making sure that no significant data is lost and important backups are created.

Download Sheet

Features
True On-line double conversion technology
Alpha Pro series is on-line double conversion UPS which provides ideal electrical output performance with continuous and uninterruptable high quality power in switching from AC to DC or DC to AC.
DSP – Digital Signal Processor Technology
Alpha Pro uses advanced USA native CPU chip with ability of faster and more accurate processing of signal data, keep UPS running in a high efficiency and low energy wasting condition. Providing you with rapid failure response and useful failure code for mechanical maintenance, raise MTBF, decrease MTTR.
High power factor
Alpha Pro input power factor closes to 1 with power factor correction, and output power factor 0.9 enables UPS to deliver more power and increase the load capacity by 13% compared with traditional products.
Wide input voltage range & auto sensing frequency
Alpha Pro has excellent voltage regulation ability with an ultra-wide input voltage range from 110 – 300 Vac, and auto-sensing 50 Hz / 60 Hz frequency to meet all kinds of grid environment.
Cold start capability
In the absence of any AC input, the cold start function allows users to start the UPS with the batteries, and without any damage to them or the circuits.
Multiple operating modes
Different operating modes (Line mode, Bypass mode, Stdby mode, Battery mode, ECO mode, CUCF/Frequency conversion mode and Fault mode) can be programmed according to user requirements.
Auto power-on and shut-down function
Under low or no-load conditions, the UPS will automatically shut down and switch to bypass mode, when the load is enabled again, the UPS will be automatically turned on and switch back to the mains power mode. This energy saving feature is great suitable for situations like office loads various from day and night.
Excellent performance and reliability
Complete hardware and software protection
Alpha Pro is equipped with over voltage, overload, surge, short circuit, over temperature protection, IGBT pulse by pulse current limiting protection, greatly ensure the stability and reliability of the system.
Power- on self test
The UPS performs advanced self-diagnostics to ensure the functionality of the UPS system and batteries, and to anticipate events before they occur.
Low noise level
Load-based fan speed control makes UPS produce low noise.
Advanced Battery Management (ABM)
Battery test function and deep discharge protection
The system has automatic / manual battery test function and deep discharge protection to optimize battery life. At the end of battery discharge, the system will pre-alarm to remind users.
Advanced charging technology
·  Automatic charging in OFF mode.
·  By monitoring and control the battery periodically self-test, automatically equalizing charge and floating charge control, effectively extending the battery life.
·  By powerful battery charger with rapid and stable charging technology, 90% capacity can be restored in 3 hours for standard model UPS, and higher charging current is available for extensible model.
Flexible and optimized battery number design
More economical battery usage and costs with different DC voltage (24 V / 36 V / 48 V / 72 V / 96V) and two UPS models (Standard model or Extensible model) for options.
Multiple functions settable via LCD panel

Output voltage, output frequency, Bypass mode, ECO mode, battery low voltage and Frequency Converter enable/disable are settable via LCD panel.

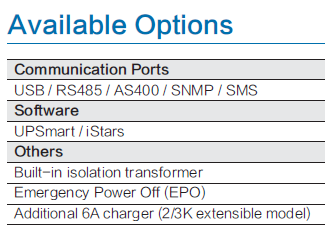

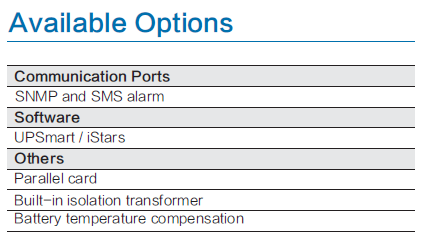

Extensible functions and options

EPO function (Optional)

Alpha Pro is equipped with an Emergency Power Off function, providing users with a way of immediately shutting down all output power from the UPS in the case of emergencies such as fire, flood, and overheating equipment.

Optional built-in isolation transformer (Optional)

Built-in power purifying isolation transformer protects the load from even the most damaging power disturbances.

Advanced multi-platform communications

Standard RS232 communication port and RJ45 protection

Optional USB / RS485 /dry contacts card / SNMP / SMS / communication port

Download Sheet

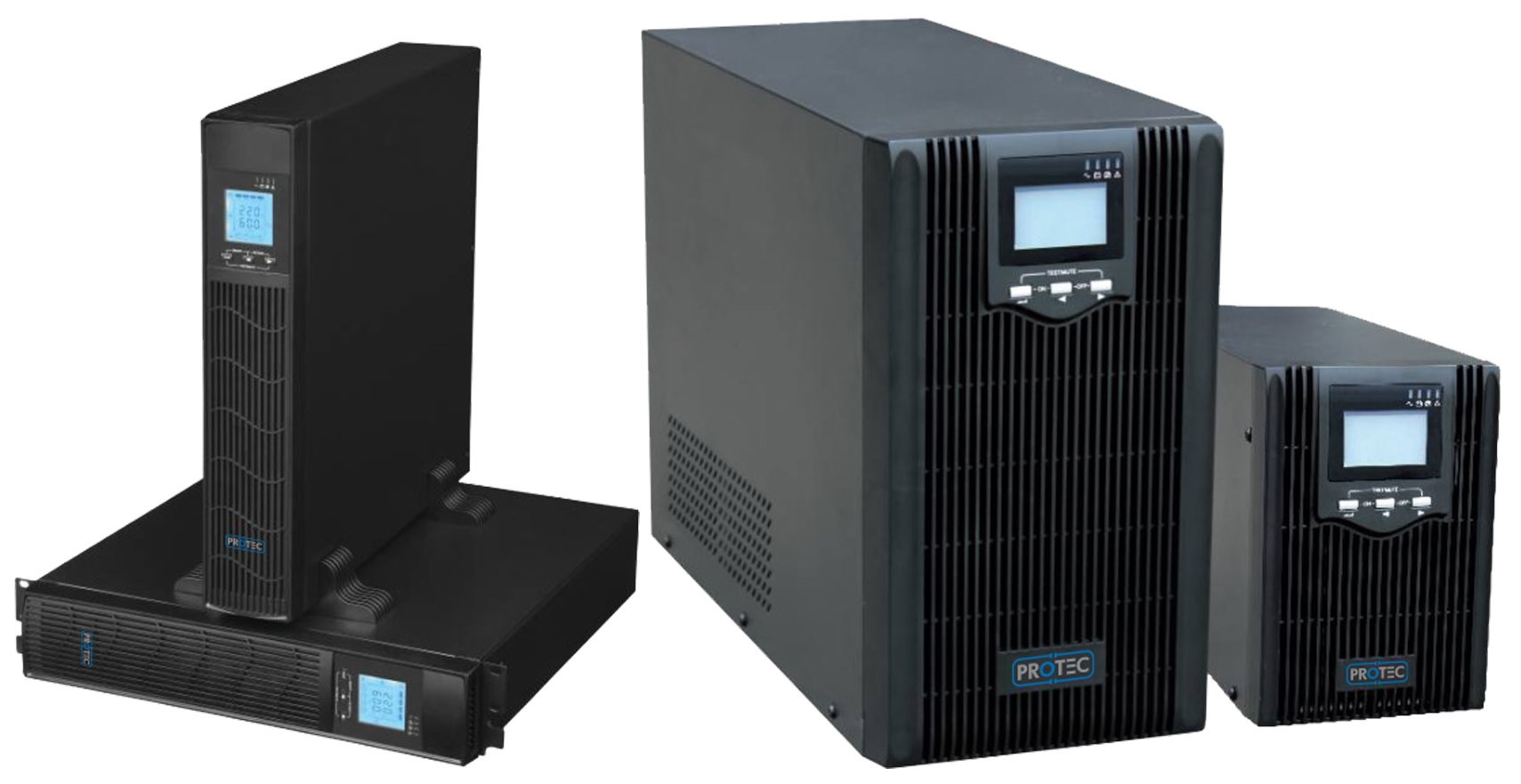

LCD Display Interface

Provides clear status of UPS key parameters

Convenient and Convertible (RT Model)

Form factor to fit easily into small spaces

Pure Sinewave Output

Simulates the utility when on battery for optimum device compatibility

Automated Voltage Regulator (AVR)

Corrects a wide range of input voltage

Output Power factor 0.9

To provide full power capability to electronic or IT equipment that may have a wide range of leading and lagging power factors

MODEL	NDC16	NDC-RT16	NDC24	NDC-RT24
Capacity	1600 W / 2000 VA		2400 W / 3000 VA
Form factor	Tower	Rackmount	Tower	Rackmount
DC INPUT
Rated voltage	36 V (S) 48 V (H)		48 V
DC input range (default)	30 ~ 45 V (S) 40 ~ 60 V (H)		40 ~ 60V
AC INPUT
AC input range (bypass mode)	0 ~ 121 V / 132 V / 138 V / 144 Vac for 100 V / 110 V / 115 V / 120 Vac ± 10 Vac 0 ~ 242 V / 264 V / 276 V / 288 Vac for 200 V / 220 V / 230 V / 240 Vac ± 10 Vac
AC input range (mains mode)	100 V: 70 ~ 130 Vac   110 V: 80 ~ 140 Vac     115 V: 85 ~ 145 Vac 120 V: 90 ~ 150 Vac    200 V: 145 ~ 260 Vac    220 V: 165 ~ 280 Vac 230 V: 175 ~ 290 Vac   240 V: 185 ~ 300 Vac
Frequency input range	50 Hz / 60 Hz (auto-sense), 50 Hz / 60 Hz ± 5% ~ 15%
Generator connection	Available (generator input power is settable)
OUTPUT
Inverter output range	100 V / 110 V / 115 V / 120 Vac ± 5% (settable) 200 V / 220 V / 230 V / 240 Vac ± 5% (settable)
AC output range (bypass mode)	0 ~ 121 V / 132 V / 138 V / 144 Vac for 100 V / 110 V / 115 V / 120 Vac ± 10 Vac 0 ~ 242 V / 264 V / 276 V / 288 Vac for 200 V / 220 V / 230 V / 240 Vac ± 10 Vac
AC output range (mains mode)	100 V: 90 ~ 110 Vac    110 V: 99 ~ 121 Vac    115 V: 103 ~ 126 Vac 120 V: 108 ~ 132 Vac   200 V: 166 ~ 226 Vac   220 V: 188 ~ 245 Vac 230 V: 199 ~ 254 Vac   240 V: 210 ~ 264 Vac
Output frequency	50 / 60 Hz ± 0.3 Hz (settable)
Waveform	Pure sine wave
Inverter efficiency	Max. 85%
Energy saving mode	Settable (< 3% load) , enter in 80s
No-load shutdown	Settable (< 3% load), shut down in 80s
Transfer time	≤ 10ms
THDV (resistive load)	≤ 5%
Protections	Overload, short circuit (inverter), battery low voltage, battery overcharge, overtemperature
Overload time (mains mode)	120s for 110%, 60s for 125%, 10s for 150% (transfer to bypass mode)
Overload time (inverter mode)	60s for 110%, 10s for 125%, 5s for 150% (Shut down directly)
Mute	Automatic mute in 60s or by manual
BATTERIES
Battery capacity (H: external expansion)	12 V / 9 Ah x 3 (H: 12 V x 4)		12 V / 9 Ah x 4
Charging current	Standard model (S): 1 A (default) Long time model (H): 10 A (default); < 10 A, set step 1 A; ≥ 10 A, set step 5 A Max. 20 A (H)		Standard model (S): 1 A (default) Long time model (H): 10 A (default); < 10 A, set step 1 A; ≥ 10 A, set step 5 A Max. 25 A (H)
Equalizing charge voltage	Single battery 14.1 Vdc (default), 13.6 ~ 15 Vdc adjustable
Floating charge voltage	Single battery 13.5 Vdc (default), 13.2 ~ 14.6 Vdc adjustable
Low voltage alarm point	Single battery 10.8 Vdc (default), 9.6 ~ 13 Vdc adjustable
Low voltage shutdown point	Single battery 10.2 Vdc (default), 9.6 ~ 11.5 Vdc adjustable
COMMUNICATIONS
USB+RJ45	Supports Windows® 98 / 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10
SNMP (optional)	Power management from SNMP manager and web browser (standard with slot)
OTHERS
Operating temperature	5°C ~ 40°C
Operating humidity	Relative humidity ≤ 93%
Noise level	≤ 50 dB (1m)
Dimensions (WxDxH) (mm)	144x410x215 (S) 144 x 345 x 215 (H)	440x410x132 (S)	190x467x335.5 (S / H)	440x410x132 (S)
Packaged Dimensions (WxDxH) (mm)	236x492x316 (S) 236x427x316 (H)	611x505x235 (S)	320x592x462 (S / H)	611x505x235 (S)
Net weight (kg)	18.5 (S) 17.8 (H)	21.3 (S)	28.1 (S) 28.0 (H)	26.7 (S)
Gross weight (kg)	19.8 (S) 18.8 (H)	24.5 (S)	30.2 (S) 30.0 (H)	30.5 (S)

Download Brochure

Fitur Eaton 5E

• Bekerja selama dibawah dan melampaui voltasi tanpa mengurangi pemakaian battery – itulah fungsi Automatic Voltage Regulation (AVR)
• Mengadalkan battery setiap saat : 5E battery mengisi kembali secara permanen (bahkan ketika off) dan UPS dapat menyala tanpa listrik (cold start)
• Hindari kerusakan yang terjadi pada line telephone: 5E USB models dilengkapi dengan perlindungan surge line data (Internet/Tel/Fax)
• Sambungkan dengan mudah semua perangkat ke UPS (PC, HD TV, internet gateway, …) berkat outlet IEC dan Schuko (pada model DIN)
• Instalasikan 5E dimana saja hasil dari ukurannya yang kecil
• Mudah mengaturkan UPS dari PC anda
• Pastikan dengan garansi Eaton UPS selama 3 tahun, dan 2 tahun battery

Download Sheet

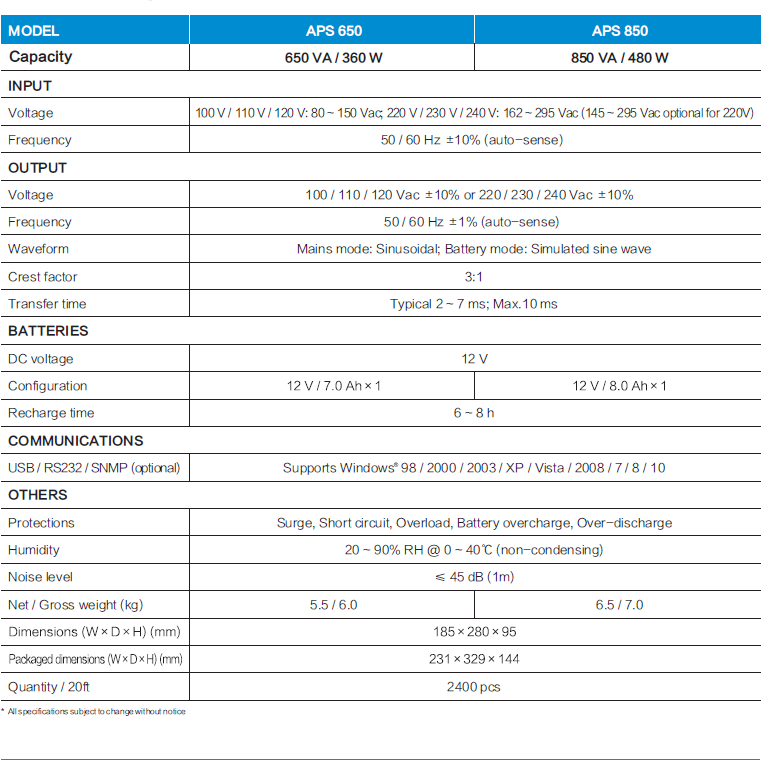

Features
Microprocessor-based digital control technology
Faster and more accurate processing of data
Wide Input Voltage Range
AidePlus UPS is capable of handling a wide input voltage range, supplying clean in extreme circumstances. It has excellent voltage regulation ability with an ultra-wide input voltage range 80 ~ 150Vac or 145 ~ 295Vac.
Built-in AVR
AidePlus UPS provides stable power to connected devices in unstable power conditions. It has built-in automatic voltage regulator, safety running in a wide voltage range, reduces the using of battery, prolongs the life of battery, especially suitable for power fluctuations or poor power area, supplying clean power in extreme circumstances.
Surge protection
Built-in precisely controlled power protection circuit, eliminate the interference of low voltage and surge, thus protecting the equipment against voltage spikes.
Short-circuit and overload protection
A short circuit is an abnormal connection between two nodes of an electrical circuit, and can cause huge damage to the UPS and any equipment attached to it. AidePlus circuit protection device will protect against potential short circuit damage, overheating, fire or even explosions. AidePlus is also equipped with overload protection, meaning that the fuse will automatically be triggered when a load exceeds its value. Both protection devices ensure the safety and reliability of the UPS and any equipment that is attached to it.
Auto sensing frequency
Aide UPS uses frequency adaptive technology. When UPS connect to mains with frequency 50HZ or 60HZ, the system will detect the frequency of mains power, and the output frequency will be the same as the detected frequency even when the mains power fails.
High-speed synchronous conversion
AidePlus system can automatically track the mains phase, to ensure that the inverter output voltage and mains voltage are identical, decrease the transfer time and surge voltage, minimize the interference to electrical equipment.
Cold start capability
In the absence of any AC input, the cold start function allows users to start UPS with batteries, and without any damage to them or the circuits. Users can easily configure the UPS, even if no AC input is available.
Intelligent battery management

• AidePlus series UPS adopt interactive design. When mains power is connected, AidePlus system will automatically charging the battery, even the UPS is OFF, to ensure the battery have enough power. When the mains power fails, AidePlus system will automatically switch to battery mode to provide sufficient runtime for the load saving data and safety shutdown.
• AidePlus UPS also be featured with battery temperature compensation to extend the battery life, three-stage charging to shorten recharge time and battery overcharge / over-discharge protections as well.

Intelligent power ON/OFF

• When the mains power is restored after discharge of the batteries, AidePlus UPS will automatically restart and self-diagnose to ensure the functionality of the UPS system and batteries.
• AidePlus system can detect load and automatically shut down in the no-load state (Optional). When the load is less than 5%, the system detects that it is under idling/no-load state, it will automatically shut down in about one minute, reduce losses, effectively extending the life of batteries.

User friendly LED
The user friendly LED status panel provides instantaneous information of the UPS.
Hot swappable battery function
Thanks to this function for battery replaceable without interruption.
Dual USB charging ports (Schuko sockets panel only)
AidePlus UPS has two convenient USB charger ports with 5 V / 1A recharge mobile devices during an outage.
Advanced multi-platform communications
 RS232 / USB communication port (Optional)
What do we get from using management software

• More customized functions.
• Settable battery discharge and low-voltage test. Through this function users can easily see batteries in good or bad condition.
• Timing boot/shutdown for UPS is available.
• Unattended Safe Shutdown by software. AWP Software is able to intelligently save the data and automatically shut down the sever or computer when a power failure occurs. This software allows the UPS to instruct the operating systems to close down a PC when it is running unattended. Users can set the parameters with which to schedule when the computer or server should shutdown, making sure that no significant data is lost and important backups are created.

Download Sheet

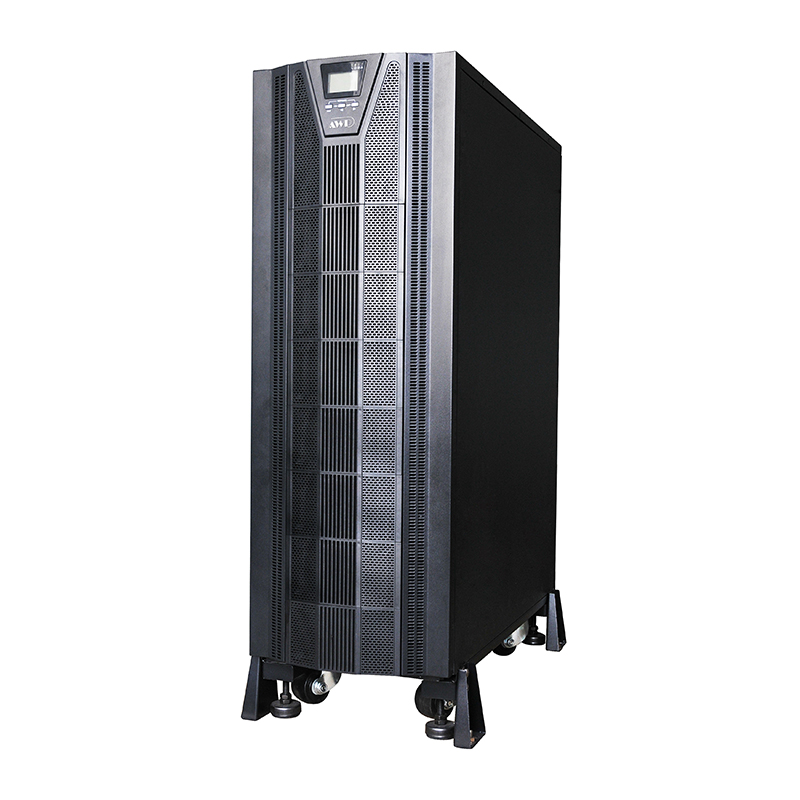

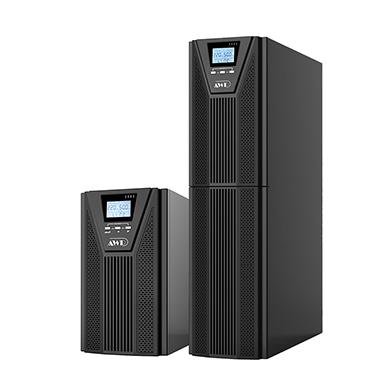

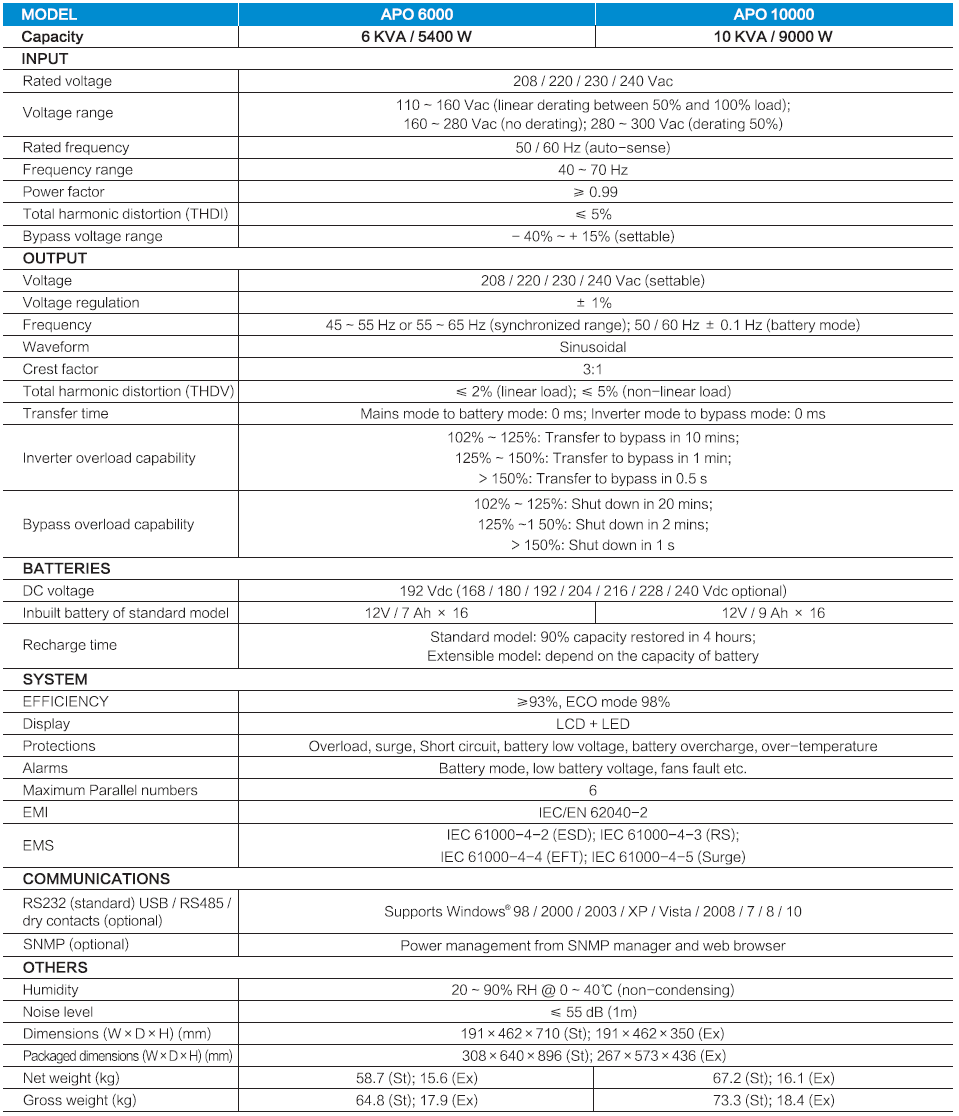

Features
High reliability

• Advanced DSP digital control technology is applied to rectifier and inverter
• Fan speed varies intelligently with temperature, reducing noise and increasing its service life
• Rear ventilation design, fan operating in slow speed, UPS being able to work for a long time in harsh environment
• Effective software and hardware protection function, powerful self-diagnostic function
• Advanced digital parallel redundant configuration for power system not only greatly improve system reliability, reduce MTTR, but also allows users to multiply capacity and uptime for future expansion by adding additional UPS systems

High availability

• Wide input voltage range, self-adaptive 50Hz /60 Hz grid system, suitable for various grid environments
• Linear derating in low voltage input, reducing battery discharging times, extending the service life of battery
• Output power factor improved from 0.8 to 0.9, load-carrying capacity increased by 13%
• Flexible and optimized battery number design (14 ~ 20pcs optional) for more economical battery usage and costs with different DC voltage (168 / 180 / 192 / 204 / 216 / 228 / 240 Vdc optional), and two UPS models (Standard model or Extensible model) for options
• Doubling the battery charging speed, 90% capacity restored in 4 hours for standard model UPS
• Cold start: Ability to switch on the UPS with batteries in the absence of mains power
• UPS power supply mode has no transfer time to ensure uninterruptible power
• Configurable switching time from battery mode to mains mode when mains power is restored, reducing the impact on power grid or generator
• Frequency conversion mode: 50Hz input / 60Hz output or 60Hz input / 50Hz output

High usability

• LCD+LED display, multi-functional keys operation, friendly human-machine interface
• Powerful background software for parameters configuration and online updating
• Compact internal layout, miniaturized the complete unit for small footprint

High intelligence

• Advanced multi-platform communications: standard RS232, optional USB, RS485, SNMP and dry contacts communication interfaces are used for monitoring UPS running status. Among them, SNMP is for remote network monitoring and management, by which can configure regular battery self test
• Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, improving the reliability of charger and extending battery service life by 50%

Energy conservation and environment protection

• Active power factor correction (APFC), input power factor up to 0.99
• Work efficiency up to 98% in ECO mode
• Auto power ON/OFF according to the load capacity set by users

Download Sheet

True Online Double Conversion

To continuously monitor and regulating both voltage and frequency

Digital Signal Processing (DSP) Control

To provide precision logic

Wide Input Voltage Window

For harsh and severe power supply condition

Output Power Factor 0.9

To provide full power capability to electronic or IT equipment that may have a wide range of leading and lagging power factors

Fan Speed Automatic Control Balance with Variable Load

Maintaining operating temperature of the system

MODEL	SDC09	SDC27	SDC54	SDC90	SDC-RT18	SDC-RT27
Capacity	900W / 1KVA	2700W / 3KVA	5400W / 6KVA	9000W / 10KVA	1800W / 2KVA	2700W / 3KVA
Form factor	Tower				Rackmount (Tower Convertible)
Topology	Online Double Conversion
INPUT
Rated voltage	208 / 220 / 230 / 240VAC		208 / 210 / 220 / 230 / 240VAC		208 / 220 / 230 / 240VAC
Voltage range	110 - 300VAC (Derating 0 - 100% load)		110 - 300VAC (Half load) ; 160 - 300VAC (Full load)		110 ~ 176 Vac (linear derating between 50% and 100% load); 176 ~ 280 Vac (no derating); 280 ~ 300 Vac (derating 50%)
Frequency	40 - 70Hz				40 ~ 70 Hz (auto-sense)
Power factor	> 0.99				≥ 0.99
OUTPUT
Voltage setting	208 / 220 / 230 / 240VAC

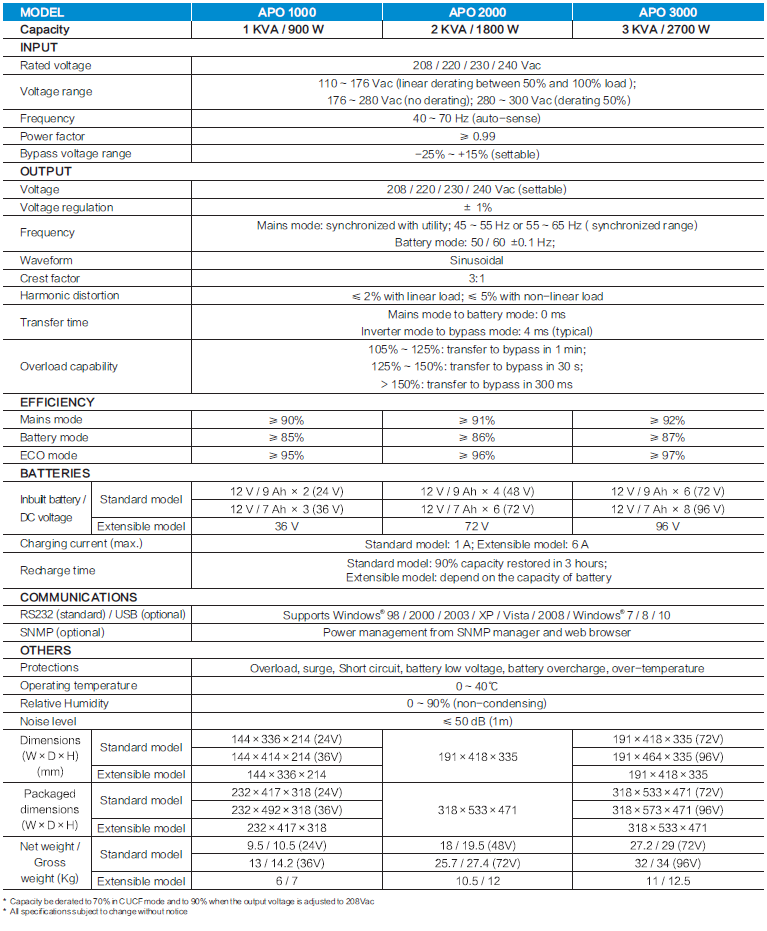

Regulation	±1%
Frequency	45-55Hz or 55-65Hz (Mains) ; 50 / 60Hz ±0.1Hz
Waveform	Pure Sinewave				Sinusoidal
Crest factor	3:1
Harmonic	< 2% (Linear load) : < 5% (Non-linear load)				≤ 2% (Linear load) : ≤ 5% (Non-linear load)
Transfer time	Mains mode to battery mode: 0 ms				Mains mode to battery mode: 0 ms Inverter mode to bypass mode: 4 ms (typical)
Overload	105 - 125% : Transfer to bypass in 1min 125 - 150% : Transfer to bypass in 30s > 150% : Transfer to bypass in 300ms		105 - 125% : Transfer to bypass in 3 min 125 - 150% : Transfer to bypass in 30s > 150% : Transfer to bypass in 100ms		105% ~ 125%: transfer to bypass in 1 min; 125% ~ 150%: transfer to bypass in 30s; > 150%: transfer to bypass in 300 ms
EFFICIENCY
Mains	> 90%	> 92%	> 93%		≥ 91%	≥ 92%
Battery	> 85%	> 87%	> 92%		≥ 86%	≥ 87%
ECO Mode	> 95%	> 97%	> 98%		≥ 96%	≥ 97%
BATTERIES
Internal	3 x 7AH	8 x 7AH	16 x 7AH	16 x 9AH	4 x 9AH	6 x 9AH
Voltage	36VDC	96VDC	192VDC		48V	72V
Recharge time	8hours
OTHERS
Communications	RS232, SNMP Slot				RS232, USB Port, SNMP Slot
Operating temperature	0 - 40°C
Relative humidity	0 - 90% (Non condensing)
Noise level	< 50 dB (1m)		< 58 dB (1m)		≤ 50 dB (1m)
W x D x H (mm)	144 x 336 x 214	191 x 464 x 335	262 x 580 x 732		440 x 658 x 88
Weight (kg)	9.5	32	73	74	22.73	29.26

Download Brochure

Fitur Eaton 5SC

• LCD interface dengan jelas memperlihatkan informasi penting
• Output sinewave untuk kompatibilitas dengan server bisnis kecil masa kini
• Desain yang compact untuk memudahkan berintegrasi bahkan ditempat yang sempit (kiosks, mesin cash, mesin tiket, dll) dan mencapai delapan outlet untuk fleksibilitas yang lebih baik.
• UPS yang dapat diandalkan, tahan lama dengan paten ABM teknologi yang meningkatkan umur service battery mencapai 50%
• Serial dan USB port adalah HID compliant untuk automatic integration terhadap major OS (Windows/MacOS/Linux)
• Eaton Intelligent Power software® dipersembahkan sebagai standard yang kompatibel dengan semua mayoritas operating systems

Download Sheet

Features
Line interactive technology with pure sine wave output
Line-interactive tolerates continuous undervoltage, overvoltage and surges without consuming the battery power, and offers increased energy efficiency. The output waveform is a sine-wave with very low harmonic distortion and clear power. Pure sine wave output makes inductive loads run faster, quieter and cooler, generates less electrical noise in equipment and appliances, prevents crashes in computer and glitches in monitors, make these equipment last longer.
Microprocessor-based digital control technology
Faster and more accurate processing of data
Built-in AVR
ArcPure UPS provides stable power to connected devices in unstable power conditions.
It has built-in automatic voltage regulator, safety running in a wide voltage range, reduces the using of battery, prolongs the life of battery, especially suitable for power fluctuation or poor power areas, supplying clean power in extreme circumstances.
Superior protection
ArcPure UPS uses Line Interactive technology with pure sine wave output. It ensures superior protection against mains power disturbances, such as surges protection, overvoltage, undervoltage, as well as built-in short circuit and overload protection.
Cold start capability
In the absence of any AC input, the cold start function allows users to start UPS with batteries, and without any damage to them or the circuits. Users can easily configure the UPS, even if no AC input is available.
High-speed synchronous conversion
ArcPure system can automatically track the mains phase, to ensure that the inverter output voltage and mains voltage are identical, decrease the transfer time and surge voltage, minimize the interference to electrical equipment.
Auto sensing frequency
ArcPure UPS uses frequency adaptive technology. When UPS connect to mains with frequency 50HZ or 60HZ, the system will detect the frequency of mains power, and the output frequency will be the same as the detected frequency even when the mains power fails.
Intelligent battery management
· ArcPure series UPS adopt interactive Design. When mains power is connected, ArcPure system will automatically charging the battery, even the UPS is OFF, to ensure the battery have enough power. When the mains power fails, Aide system will automatically switch to battery mode to provide sufficient runtime for the load saving data and safety shutdown.
· In order to meet continuity applications requiring long battery runtimes, ArcPure UPS features adjustable charging current and adjustable low battery shutdown point to extend battery life.
· ArcPure UPS also be featured with battery temperature compensation to extend the battery life, three-stage charging to shorten recharge time and battery overcharge / over-discharge protections as well.
Intelligent power ON/OFF
· When the mains power is restored after discharge of the batteries, ArcPure UPS will automatically restart and self-diagnose to ensure the functionality of the UPS system and batteries.
· ArcPure system can detect load and automatically shut down in the no-load state (Optional). When the load is less than 5%, the system detects that it is under idling/no-load state, it will automatically shut down in about one minute, reduce losses, effectively extending the life of batteries.
User friendly LCD display
· ArcPure LCD model have a backlit LCD display for users to observe the UPS status information, load and battery performance.
Advanced multi-platform communications
Standard USB+RJ45, optional USB+RS232, AS400 / SNMP communication ports
What do we get from using management software
· More customized functions.
· Settable battery discharge and low-voltage test. Through this function users can easily see batteries in good or bad condition.
· Timing boot/shutdown for UPS is available.
· Unattended Safe Shutdown by software. AWP Software is able to intelligently save the data and automatically shut down the sever or computer when a power failure occurs. This software allows the UPS to instruct the operating systems to close down a PC when it is running unattended. Users can set the parameters with which to schedule when the computer or server should shutdown, making sure that no significant data is lost and important backups are created.

Download Sheet

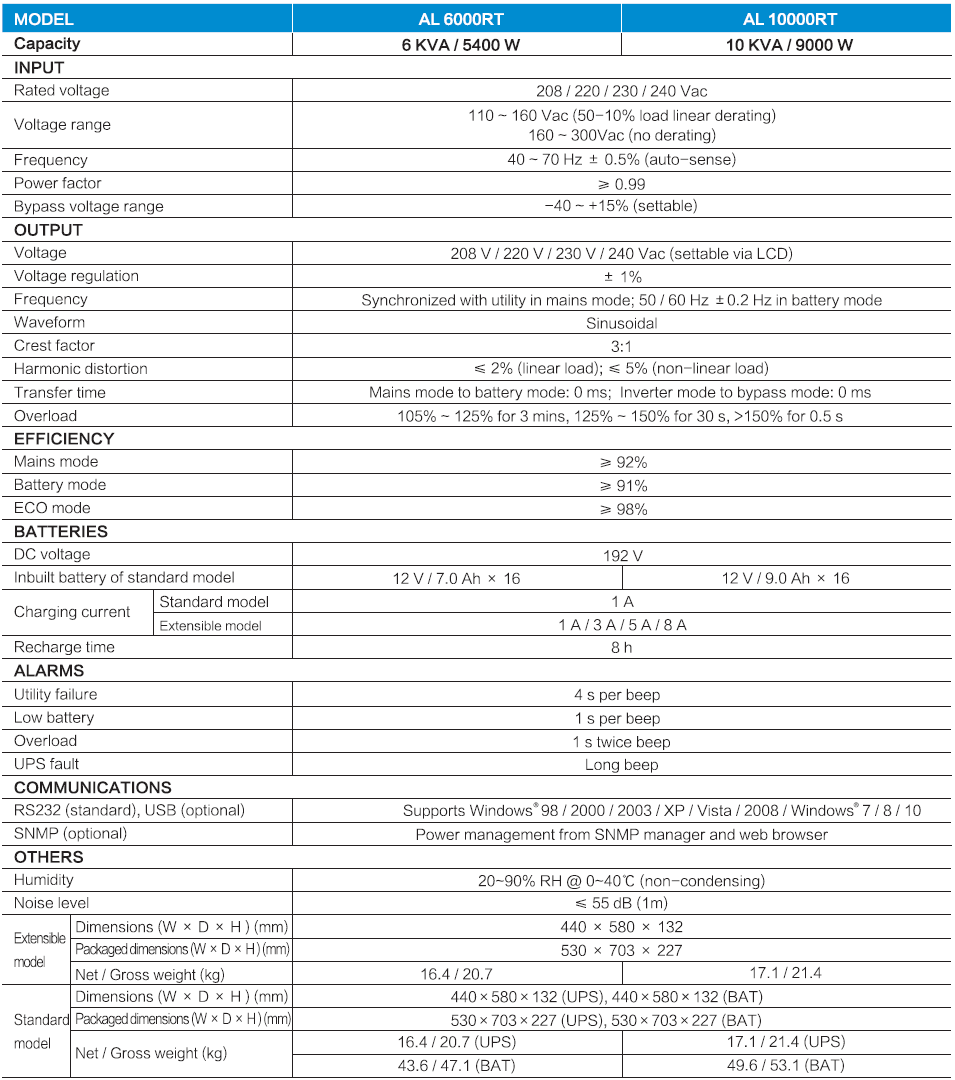

Features
True On-line double conversion technology
Alpha Pro is an On-line double conversion UPS which provides ideal electrical output performance with continuous and uninterruptable high quality power in switching from AC to DC or DC to AC.
DSP – Digital Signal Processor Technology
Alpha Pro uses advanced USA native CPU chip with ability of faster and more accurate processing of signal data, keep UPS running in a high efficiency and low energy wasting condition. Providing you with rapid failure response and useful failure code for mechanical maintenance, raise MTBF, decrease MTTR.
Tower / Rack convertible and simplified installation
Users can easily install the UPS system as either a tabletop or a rack mounted device by utilizing the easy-shift LCD display.
High power factor
Alpha Pro input power factor closes to 1 with power factor correction, and output power factor 0.9 enables UPS to deliver more power and increase the load capacity by 13% compared with traditional products.
Wide input voltage range & auto sensing frequency
Alpha Pro has excellent voltage regulation ability with an ultra-wide input voltage range from 110 – 300 Vac, and auto-sensing 50 Hz / 60 Hz frequency to meet all kinds of grid environment.
Cold start capability
In the absence of any AC input, the cold start function allows users to start the UPS with the batteries, and without any damage to them or the circuits.
Multiple operating modes
Different operating modes (Line mode, Bypass mode, Stdby mode, Battery mode, ECO mode, CUCF/Frequency conversion mode and Fault mode) can be programmed according to user requirements.
Auto Power-on and Shut-down function
Under low or no-load conditions, the UPS will automatically shut down and switch to bypass mode, when the load is enabled again, the UPS will be automatically turned on and switch back to the mains power mode. This energy saving feature is great suitable for situations like office loads various from day and night.
Excellent performance and reliability
Complete hardware and software protection
Alpha Pro is equipped with over voltage, overload, surge, short circuit, over temperature protection, IGBT pulse by pulse current limiting protection, greatly ensure the stability and reliability of the system.
Power- on self test
The UPS performs advanced self-diagnostics to ensure the functionality of the UPS system and batteries, and to anticipate events before they occur.
Low noise level
Load-based fan speed control makes UPS produce low noise.
Advanced Battery Management (ABM)
Battery test function and deep discharge protection
The system has automatic / manual battery test function and deep discharge protection to optimize battery life. At the end of battery discharge, the system will pre-alarm to remind users.
Advanced charging technology

• Automatic charging in OFF mode
• By monitoring and control the battery periodically self-test, automatically equalizing charge and floating charge control, effectively extending the battery life
• By powerful battery charger with rapid and stable charging technology, 90% capacity can be restored in 3 hours for standard model UPS, and higher charging current is available for extensible model

Flexible and optimized battery number design
More economical battery usage and costs with different DC voltage (24 V / 36 V / 48 V / 72 V / 96V) and two UPS models (Standard model or Extensible model) for options
Multiple functions settable via LCD panel
Output voltage, output frequency, Bypass mode, ECO mode, battery low voltage and Frequency Converter enable/disable are settable via LCD panel.

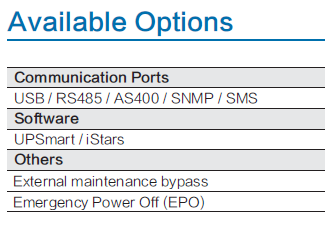

Extensible functions and options
EPO function (Optional)
Alpha Pro is equipped with an Emergency Power Off function, providing users with a way of immediately shutting down all output power from the UPS in the case of emergencies such as fire, flood, and overheating equipment.
Advanced multi-platform communications
Standard RS232 communication port and RJ45 protection
Optional USB / RS485 / dry contacts card / SNMP / SMS / communication port

Download Sheet

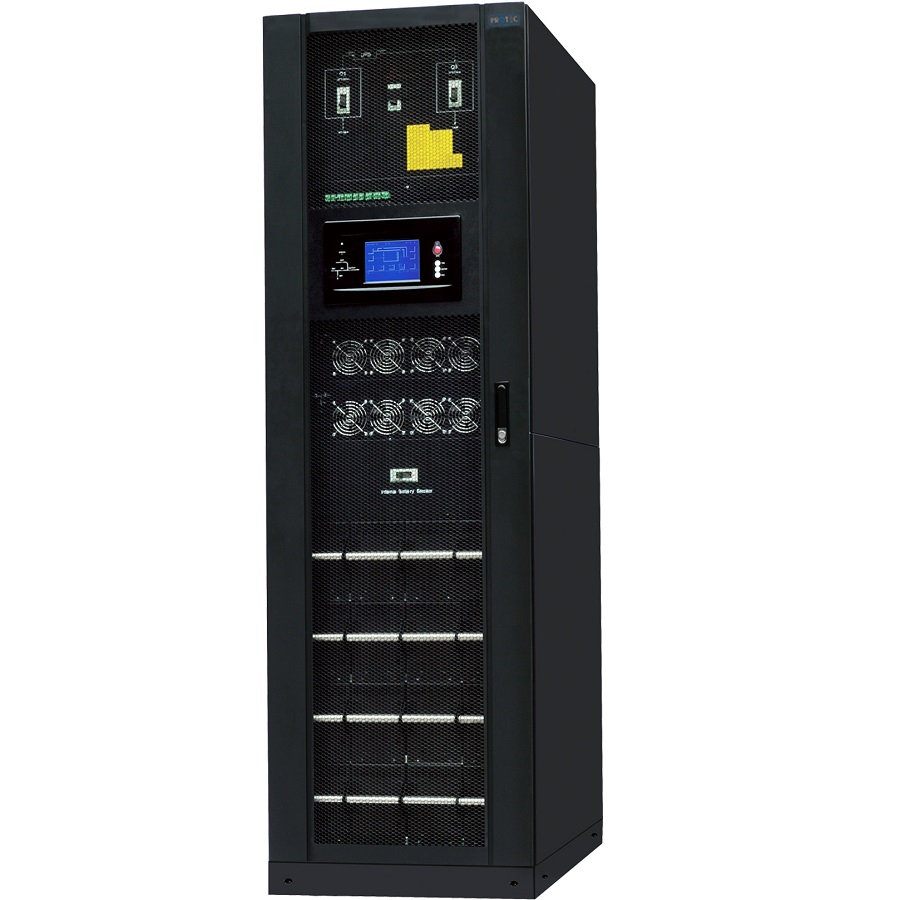

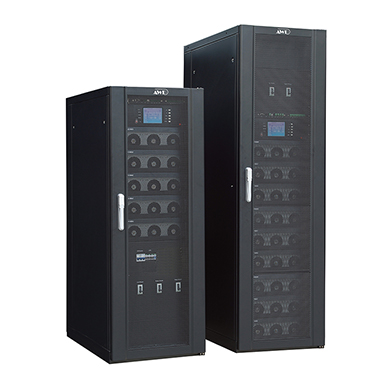

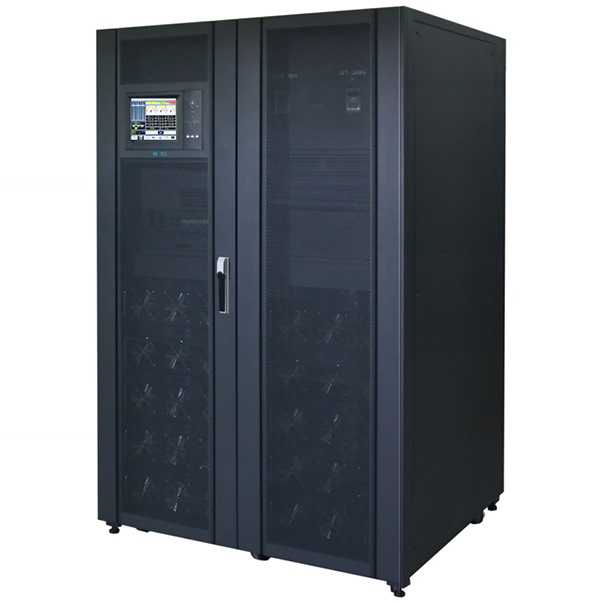

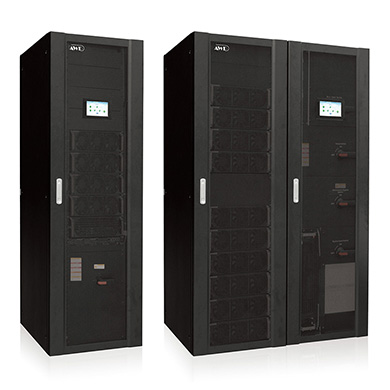

DSP Digital Control Technology
Pure Sine Wave Double Conversion

with strong load capacity

Modular Design

high reliability and easy maintenance

Dual Input Power Distribution

for higher usability

Input

Input power factor > 0.99, THDi < 3%, environment friendly and high-efficiency and energy-saving

Keep High Efficiency Operation

at low load rate: 96% at 40% rated load and 95% at 20% rated load

High Power Density

500KVA system only 1.02 m2 footprint

High Efficiency Operating

in on-line mode up to 96%, in ECO mode up to 99%

Wide Input Voltage Range

50Hz / 60Hz frequency anto-sense, adapt to all kind of grid

Support Two Modes of Frequency Conversion

50Hz input / 60Hz output and 60Hz / input 50Hz output

Output

power factor 0.9, load capability improved 12.5% more than traditional products

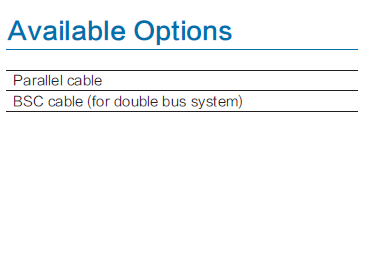

Advanced Parallel Expansion Technology

support 4 units in parallel

Share Battery Pack

in parallel operation, saving user’s battery cost

Flexible Charger Parameter

and battery configuration setting, battery number 30 ~ 46pcs selectable

Intelligent Battery Management

Intelligent charge / discharge management and float charging voltage temperature compensation, extending battery lifespan

Support Battery Cold Start

and utility self boot

Self-aging Function

easy debugging and test on site

Complete Hardware and Software Protection Function

robust self-diagnostic function, and abundant event log for check

LCD Touch Screen

7 inches LCD touch screen, friendly human-machine interface

Monitoring Unit with Built-in SNMP

supports RS485 and dry contacts

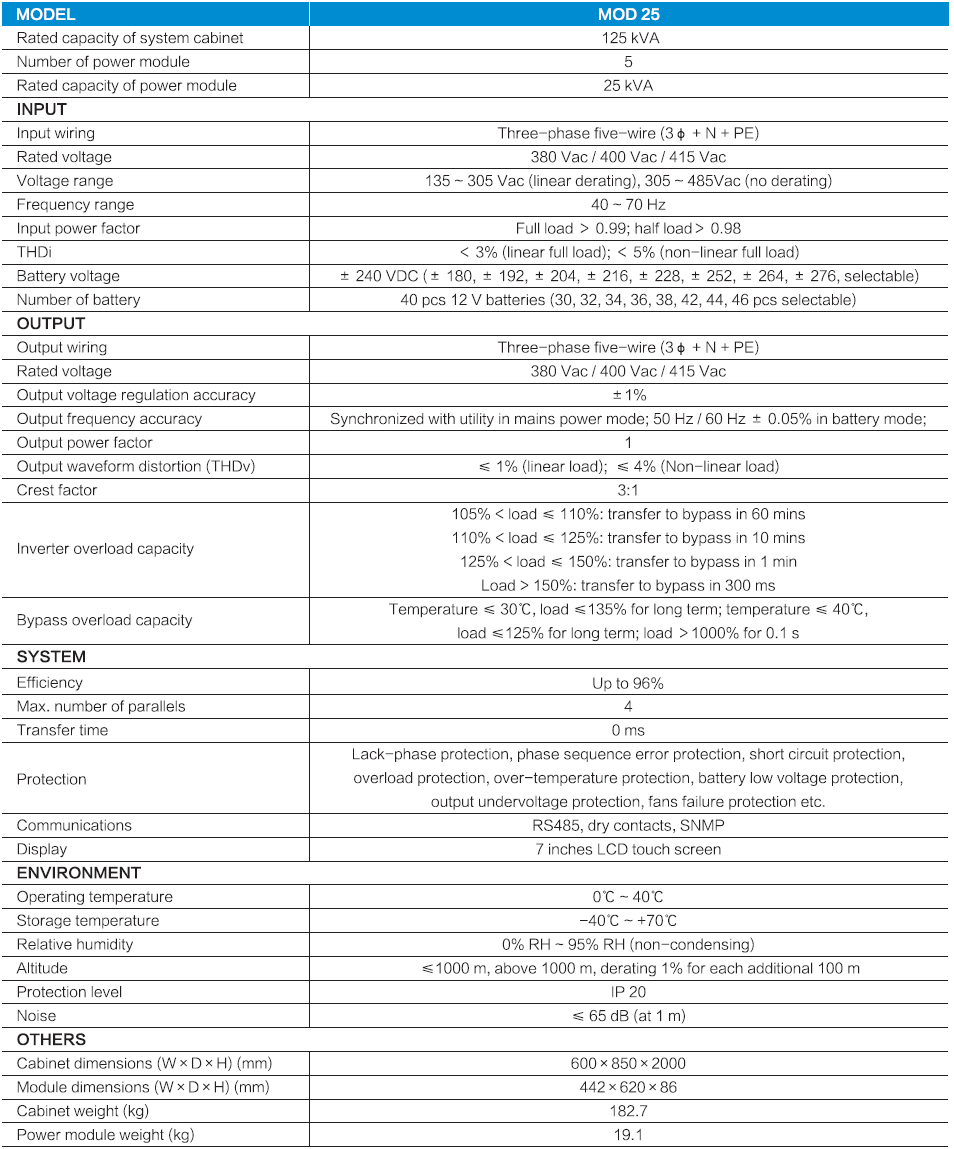

MODEL
Rated capacity		450 KW / 500 KVA
INPUT
Input wiring		3Ph+N+PE
Rated voltage		380/400/415Vac
Voltage range		138 ~ 485 Vac (305 ~ 485 Vac without power downgrading; 138 ~ 305 Vac with linear downgrading 40%)
Input frequency		40 ~ 70Hz
Power factor		≥ 0.99
Current distortion		< 3%
BATTERIES
Battery voltage		± 240 Vdc (±180, ± 192, ± 204, ± 216, ± 228, ± 252, ± 264, ± 276 selectable)
Number of battery		40 pcs12V batteries ( supports 30 / 32 / 34 / 36 / 38 / 42 / 44 / 46 pcs)
OUTPUT
Output wiring		3Ph+N+PE
Rated voltage		380 / 400 / 415 Vac
Voltage regulation accuracy		± 1%
Frequency		Synchronized with utility in mains power mode: 50 Hz / 60 Hz ± 0.25% in battery mode:
Power factor		0.9
Voltage distortion		≤ 1% with liner load / ≤ 3% with non-linear load
Crest factor		3:1
Inverter overload capacity		105% < load ≤ 110%: transfer to bypass in 60 min 110% < load ≤ 125%: transfer to bypass in 10 min 125% < load ≤ 150%: transfer to bypass in 1 min Load > 150%: transfer to bypass in 200 ms
Bypass overload capacity		Load ≤ 135% for long term; < 1000% load for 100ms
SYSTEM
Efficiency		96%
Max. number of parallel		4 units
Transfer time		0ms
Protection		Lack-phase protection, phase-error protection, short circuit protection, overload protection, over-temperature protection, battery low voltage protection, output over / low voltage protection, fans failure protection ect.
Communications		RS485, dry contacts, SNMP
Display		7 inches LCD touch screen
OTHERS
Operating temperature		0 ~ 40°C
Storage temperature		-40°C ~ 70°C
Humidity		0 ~ 95%(non-condensing)
Altitude		≤ 1000m. Above 1000m, derating 1% for each additional 100m
Protection level		IP20
Noiselevel at 1 m		< 68 dB
Cabinet dimensions (WxDxH) (mm)		1200x850x2000
Weight (kg)		795

Fitur Eaton 5P

• Tampilan LCD grafis generasi terbaru (7 bahasa)
• Efisien energi (sampai efisiensi 98%)
• Pengukuran energi
• Advance Battery Management (ABM)
• Kelompok soket switched
• Keluaran sinewave
• Menawarkan komunikasi yang luas (kompatibel dengan lingkungan virtual)
• Garansi 3 tahun untuk elektronik, 2 tahun untuk baterai

Download Sheet

Power Management Connectivity
Network Card-MS Menyediakan pengawasan serta pengaturan secara real time untuk UPS yang berada didalam Network anda.
Relay Card- MS Menyediakan dry-contact interface antar UPS anda dan relay yang terhubung ke computer, termasuk AS/400, dan juga berbagai penerapan industri lainnya
Network and MODBUS Card-MS Menyediakan sistem monitoring UPS jarak jauh yang akurat serta berkelanjutan

Features

• Rack / Tower design
•  High frequency and true double-conversion
•  DSP digital control technology
• Input power factor correction (PFC)
•  Wide input voltage range (110 V ~ 300 V)
• Output power factor 0.9
• Cold start
• Auto sensing frequency
• ECO mode operation for energy saving
• Selectable output voltage via LCD
• 50 Hz / 60 Hz frequency conversion mode
• Selectable battery low voltage via LCD
• Power-on self test
• Advanced battery management (ABM)
• Short circuit and overload protection
• Automatic charging in OFF mode
• Fan speed auto control when temperature varies
• Standard RS232 communication port and RJ45 protection
• Optional USB / SNMP communication port
• Optional emergency power off (EPO)
• Optional extension battery bank
• Optional N+X redundancy parallel
• Optional external maintenance bypass

Download Sheet

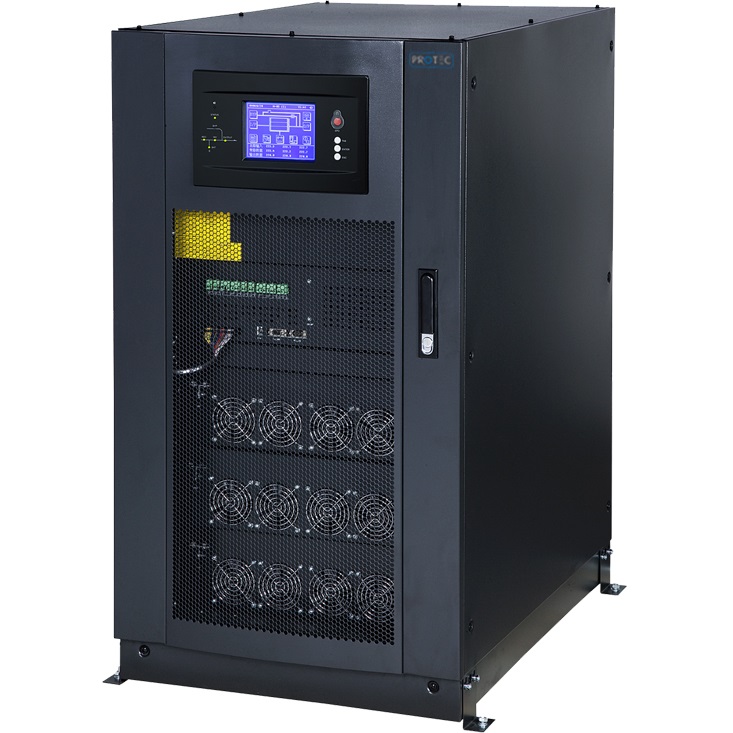

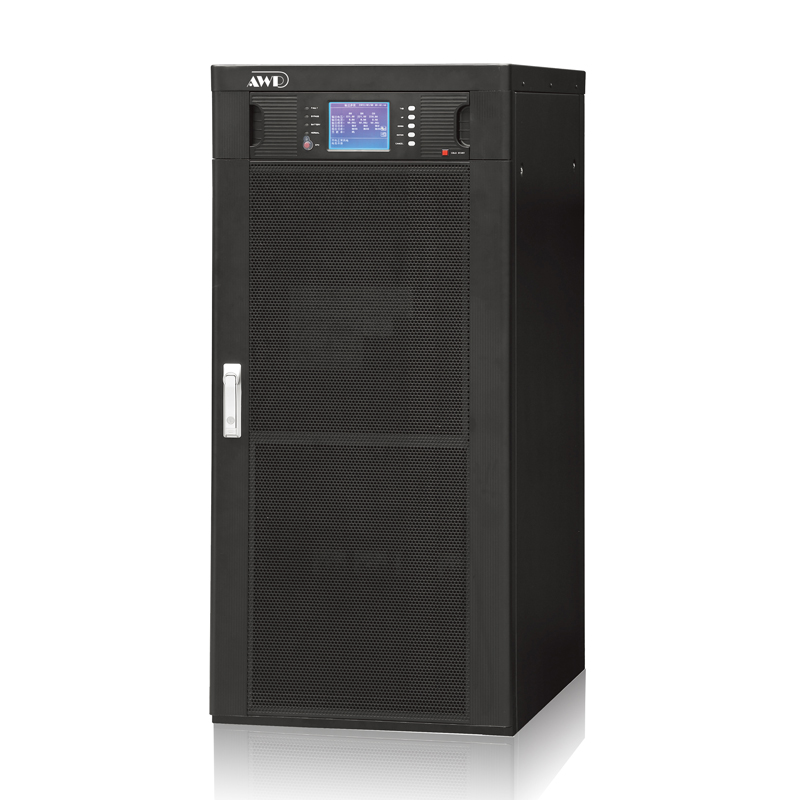

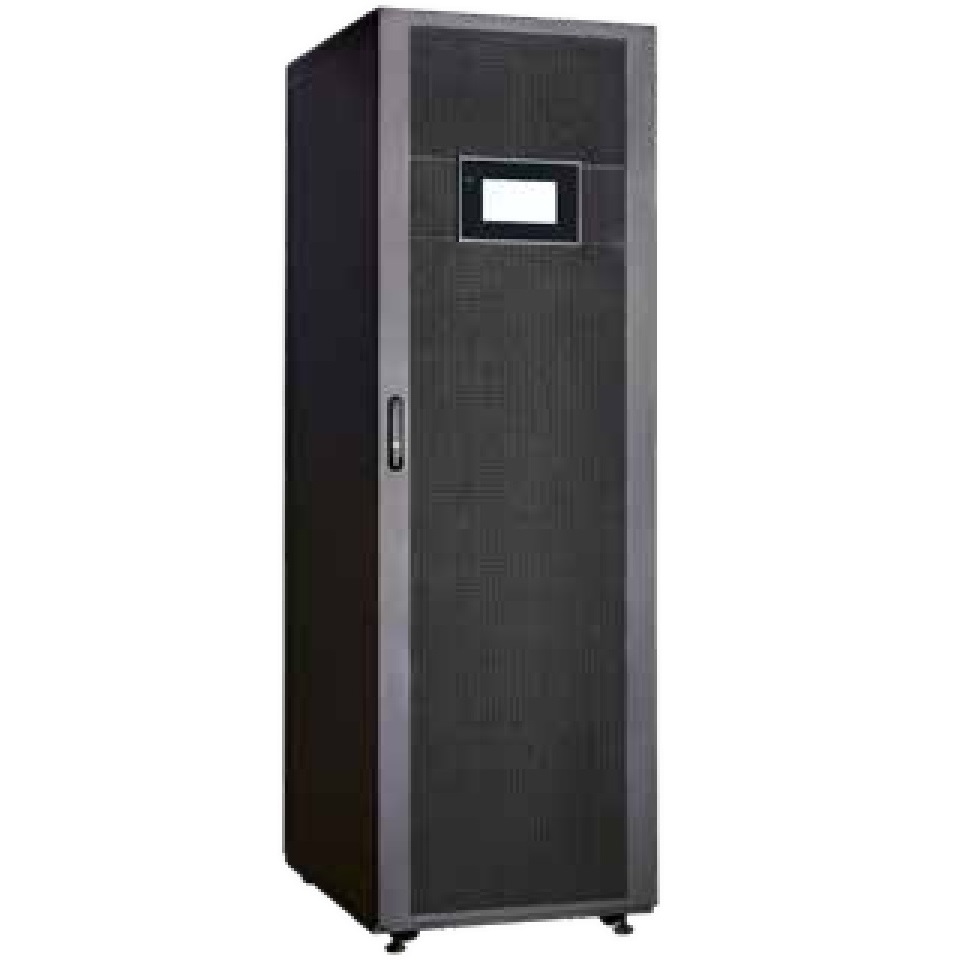

High Frequency

online double-conversion with DSP control

Modular Design

high reliability, easily maintenance

Double Input Distribution

higher reliability of system

Input Power Factor Correction (PFC)
ECO Mode Operation

for energy saving

Wide Input Voltage Range

50 Hz / 60 Hz auto-sense frequency

Support Two Modes of Frequency Conversion

50 Hz input / 60 Hz output and 60 Hz input / 50 Hz output

Input & Output

Input power factor > 0.99, input THDi ≤ 3%, output THDV ≤ 5%, output power factor 0.9

High Efficiency

load > 10%, efficiency ≥ 90%; load > 50%, efficiency ≥ 93%

Digitized Charger

flexible charger parameter and battery configuration setting, monitoring battery disconnected on line

Share Battery Pack

in parallel operation or separate battery pack for different UPS

Flexible Charger Parameter

and battery configuration setting, selectable battery number: 32 pcs / 34 pcs / 36 pcs / 38 pcs / 40 pcs

Advanced Intelligent Battery Management Technique

prolong the working life of battery effectively

Support Battery Cold Start

and mains supply self-starting

LCD Touch Screen

5.7 inches LCD touch screen, friendly human & machine interface

Perfect Protective Function

in hard and software, robust self-diagnosing, abundant event log for future check

Perfect Password Control Technology

including the first power-on password control, user password control and Maintenance password control

Reminders of Battery Out of Warranty
Standard Emergency Power Off (EPO)
Standard RS232 / USB / RS485 / Dry Contacts Communication Port
Optional SNMP Communication Port
Optional N+1 Redundancy Parallel up to 4 Units
Optional Built-in Isolation Transformer
Optional Battery Temperature Compensation

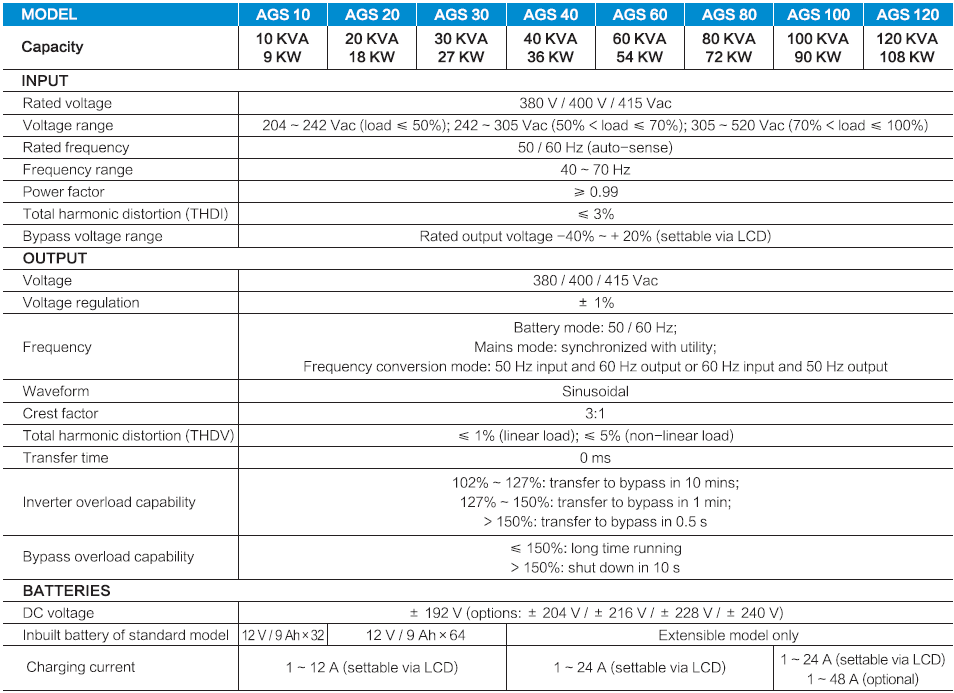

MODEL
Capacity		72 KW / 80 KVA
INPUT
Rated voltage		380 V / 400 V / 415 Vac
Voltage range		204 ~ 242 Vac (load ≤ 50%); 242 ~ 305 Vac (50% < load ≤ 70%); 305 ~ 520 Vac (70% < load ≤ 100%)
Rated frequency		50 / 60 Hz (auto-sense)
Frequency range		40 ~ 70 Hz
Power factor		≥ 0.99
Total harmonic distortion (THDI)		≤ 3%
Bypass voltage range		Rated output voltage -40% ~ rated output voltage + 20% (settable via LCD)
OUTPUT
Voltage		380 V / 400 V / 415 Vac
Voltage regulation		± 1%
Frequency		Synchronized with utility in mains mode; Frequency conversion mode: 50 Hz input and 60 Hz output or 60 Hz input and 50 Hz output 50 / 60 Hz in battery mode
Waveform		Sinusoidal
Crest factor		3:1
Total harmonic distortion (THDV)		≤ 1% (linear load); ≤ 5% (non-linear load)
Transfer time		0 ms
Inverter overload capability		102% ~ 127%: transfer to bypass in 10 mins; 127% ~ 150%: transfer to bypass in 1 min; > 150%: transfer to bypass in 0.5 s
Bypass overload capability		≤ 150%: long time running > 150%: shut down in 10 s
BATTERIES
DC voltage		± 192 V (options: ± 204 V / ± 216 V / ± 228 V / ± 240 V)
Inbuilt battery of standard model		No
Charging current		1 ~ 24 A (settable via LCD)
SYSTEM
Efficiency		≥ 93%, ECO mode 98.5%
Display panel		5.7 Inches LCD touch screen
Alarm		Battery mode, low battery, fans fault etc
Max. parallel numbers		4
EMI		EN62040-2
EMS		IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (surge)
COMMUNICATIONS
RS232 / RS485 / USB / dry contacts (standard)		Supports Windows® 98 / 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10
SNMP (optional)		Power management from SNMP manager and web browser
OTHERS
Humidity		0 ~ 95% RH @ 0 ~ 40°C (non-condensing)
Noise level		≤ 60 dB
Dimensions (WxDxH) (mm)		600x800x1680
Packaged dimensions (WxDxH) (mm)		720x920x1820
Net / Gross weight (kg) Without inbuilt battery		316 / 376

Fitur Eaton 5PX

• Konsumsi energi turun sampai ke level grup keluaran
• Layar LCD intuitif menampilkan semua informasi yang Anda butuhkan dalam sekilas
• 5PX dapat memberikan efisiensi sampai 99%, mengurangi biaya pendinginan dan utilitas
• Dilengkapi dengan Eaton’s Intelligent Power® Software Suite yang kompatibel dengan semua sistem operasi utama termasuk software virtualisasi
• Faktor daya 0,9 untuk melindungi lebih banyak server dari satu UPS
• Melindungi Anda dengan 3 tahun garansi untuk elektronik (2 tahun untuk baterai)

Download Sheet

Baterai
Eaton 5PX 48 R/T EBM 2U 2U Extended Battery Module (EBM) memberikan runtime tambahan untuk UPS Eaton 5PX 1500, 2000 dan 2200 - maksimal 4 EBM dapat disambungkan ke setiap UPS
Eaton 5PX 72 R/T EBM 2U 2U Extended Battery Module (EBM) memberikan runtime tambahan untuk UPS Eaton 5PX 3000 2U – maksimal 4 EBM dapat disambungkan ke setiap UPS

Power Management Connectivity
Network and MODBUS Card-MS Menyediakan sistem monitoring UPS jarak jauh yang akurat serta berkelanjutan
Network Card-MS Menyediakan pengawasan serta pengaturan secara real time untuk UPS yang berada didalam Network anda.
Relay Card- MS Menyediakan dry-contact interface antar UPS anda dan relay yang terhubung ke computer, termasuk AS/400, dan juga berbagai penerapan industri lainnya
IBM AS/400 Cable Kabel Antarmuka UPS untuk koneksi UPS ke IBM iSeries/AS 400

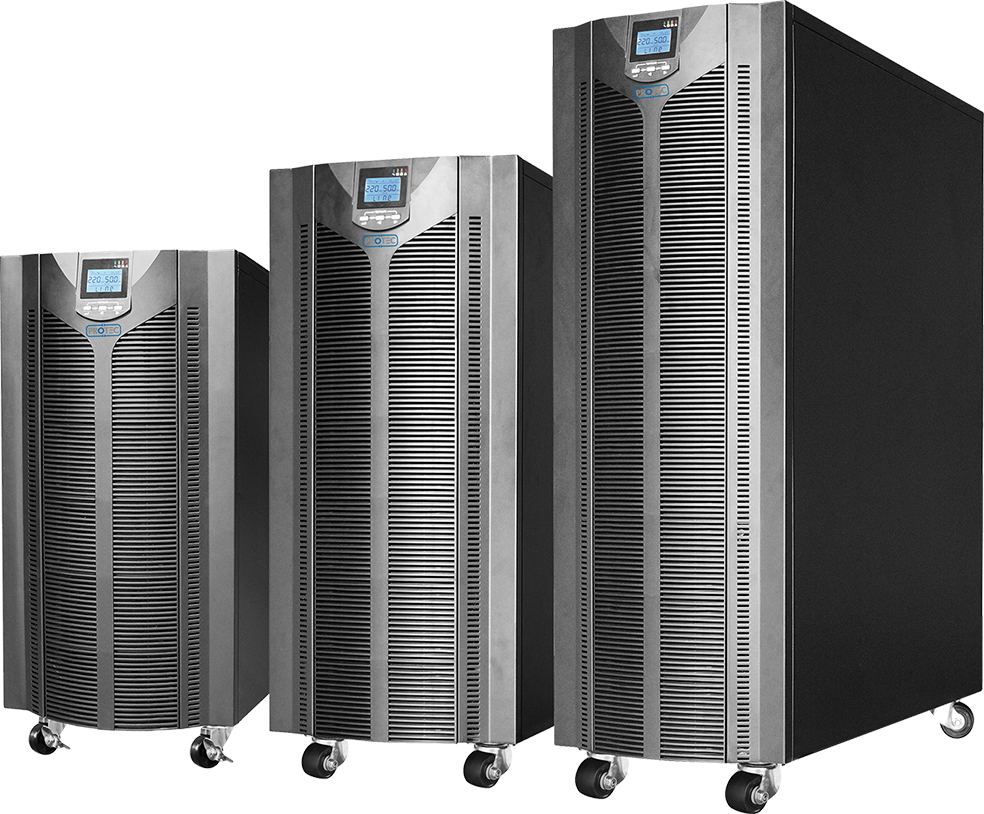

DSP Digital Control Technology
Active Power Factor Correction (APFC)

input power factor up to 0.99

Output Power Factor 0.9
Cold Start
Dual Input
Wide Input Voltage

range (190V ~ 485V)

Auto Sensing Frequency
50 / 60Hz Frequency Conversion Mode
Work Efficiency up to 98% in ECO Mode
Auto Control Fan Speed

when loads varies

Auto Power ON/OFF

according to the load capacity set by users

Flexible Battery Configuration

for using 14/16/18/20 pcs batteries

Compact Internal Layout

miniaturized the complete unit for small footprint

LCD+LED Display

multi-functional keys operation, friendly human-machine interface

Powerful Background Software

for parameters configuration and online updating

Doubling the Battery Charging Speed

90% capacity restored in 4 hours (standard model UPS)

Linear Derating in Low Voltage Input

reducing battery discharging times, extending the service life of battery

Advanced Battery Management (ABM)

automatic floating / equalizing charge control, charger dormancy control

Configurable Switching Time

from battery mode to mains mode when mains power is restored, reducing the impact on power grid or generator

Effective Software and Hardware Protection Function

powerful self-diagnostic function, abundant historical records

Standard Emergency Power Off (EPO)
Standard Maintenance Bypass
Standard RS232/USB Communication Port

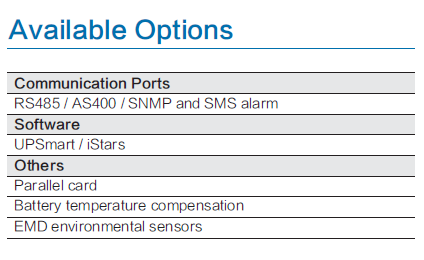

Optional RS485 / SNMP / AS400 Communication Port and SMS Alarms
Optional N+X Redundancy Parallel up to 6 Units
Optional Battery Temperature Compensation

EMD environmental sensors

MODEL

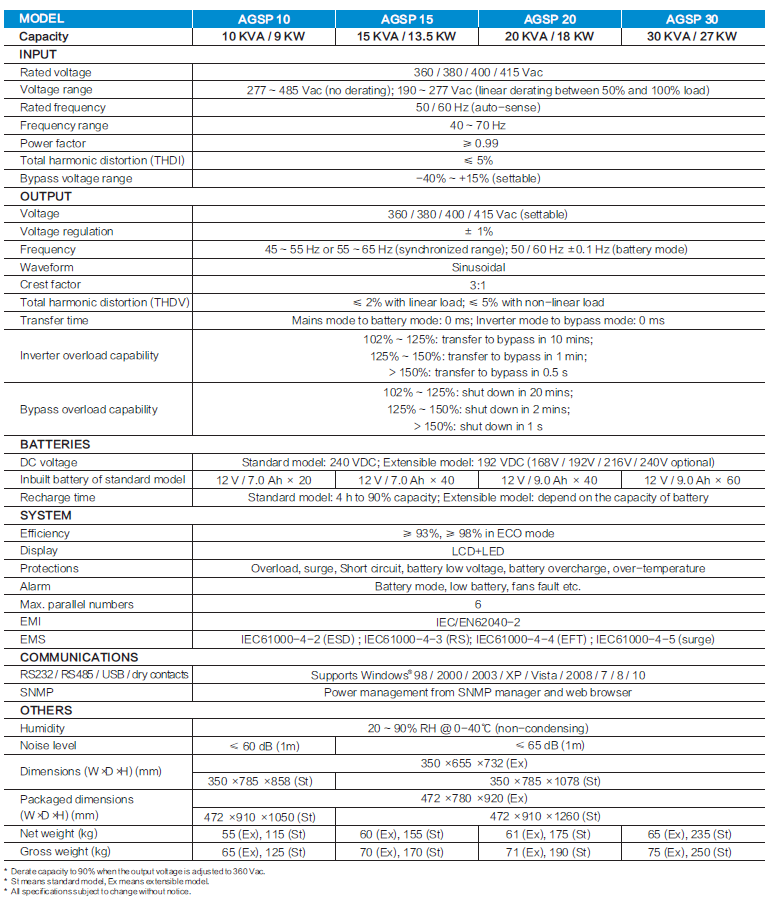

Capacity		27 KW / 30 KVA
INPUT
Rated voltage		360 V / 380 V / 400 V / 415 Vac
Voltage range		277 ~ 485 Vac (no derating) 190 ~ 277 Vac (linear derating between 50% and 100% load)
Rated frequency		50 / 60 Hz (auto-sense)
Frequency range		40 ~ 70 Hz
Power factor		≥ 0.99
Total harmonic distortion (THDI)		≤ 5%
Bypass voltage range		-40% - +15% (settable)
OUTPUT
Voltage		360 V / 380 V / 400 V / 415 Vac (settable)
Voltage regulation		± 1%
Frequency		45 ~ 55 Hz or 55 ~ 65 Hz (synchronized range); 50 / 60 Hz ± 0.1 Hz (battery mode)
Waveform		Sinusoidal
Crest factor		3:1
Total harmonic distortion (THDV)		≤ 2% (linear load); ≤ 5% (non-linear load)
Transfer time		Mains mode to battery mode: 0 ms; Inverter mode to bypass mode: 0 ms
Inverter overload capability		102% ~ 125%: transfer to bypass in 10 mins; 125% ~ 150%: transfer to bypass in 1 min; > 150%: transfer to bypass in 0.5 s
Bypass overload capability		102% ~ 125%: shut down in 20 mins; 125% ~ 150%: shut down in 2 mins; > 150%: shut down in 1 s
BATTERIES
DC voltage		Standard model: 240 VDC; Long time model: 192 VDC (168 V / 192 V / 216 V / 240 V optional)
Inbuilt battery of standard model		60x9 Ah
Recharge time		Standard model: 90% capacity restored in 4 hours; Long time model: depend on the capacity of battery
SYSTEM
Efficiency		≥ 93%, ECO mode 98%
Display		LCD + LED
Alarm		Battery mode, low battery, fans fault etc.
Max. parallel numbers		6
EMI		IEC / EN62040-2
EMS		IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (surge)
COMMUNICATIONS
RS232 / USB / RS485 / dry contacts		Supports Windows® 98 / 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10
SNMP		Power management from SNMP manager and web browser
OTHERS
Humidity		20 ~ 90% RH @ 0 ~ 40°C (non-condensing)
Noise level		≤ 65 dB (1m)
Dimensions (mm) WxDxH		350x655x732 (H) 350x785x1078 (S)
Packaged dimensions (mm) WxDxH		472x780x920 (H) 472x910x1260 (S)
Net weight (kg)		65 (H), 235 (S)
Gross weight (kg)		75 (H), 250 (S)

Fitur Eaton 9130

• Mengurangi biaya dan penggunaan energi dengan efisiensi sampai 95% dalam modus konversi ganda online dan 98% dalam modus efisiensi tinggi
• Memberikan lebih banyak daya sesungguhnya (watts) untuk melindungi lebih banyak peralatan dan memberikan ruang untuk sistem TI yang berkembang dengan faktor daya 0,9
• Memudahkan pemantauan dan pengelolaan UPS dengan LCD antarmuka pengguna yang terang, software gratis untuk pengelolaan data yang intuitif dan layanan opsional eNotify Remote Monitoring
• Memperpanjang usia baterai dan uptime sistem dengan teknologi baterai ABM dan hot-swappable batteries
• Memperpanjang runtime baterai untuk perangkat kritis dengan segmen beban (kecuali untuk model 5000/6000 VA)
• Memaksimalkan runtime dengan extended battery modules opsional

Download Sheet

Baterai
Eaton 9130 1000 Tower EBM Extended Battery Module (EBM) memberikan runtime tambahan untuk UPS Eaton 9130 1000 Tower sampai 4 EBM dapat dipasang di setiap UPS
Eaton 9130 1500 Tower EBM Extended Battery Module (EBM) memberikan runtime tambahan untuk UPS Eaton 9130 1500 Tower sampai 4 EBM dapat dipasang di setiap UPS
Eaton 9130 3000 Tower EBM Extended Battery Module (EBM) memberikan runtime tambahan untuk UPS Eaton 9130 2000 dan 3000 Tower sampai 4 EBM dapat dipasang di setiap UPS
Eaton 9130 6000 Tower EBM Extended Battery Module (EBM) memberikan runtime tambahan untuk UPS Eaton 9130 5000 dan 6000 Tower - sampai 4 EBM dapat dipasang di setiap UPS

Power Management Connectivity
Network and MODBUS Card-MS Menyediakan sistem monitoring UPS jarak jauh yang akurat serta berkelanjutan
Network Card-MS Menyediakan pengawasan serta pengaturan secara real time untuk UPS yang berada didalam Network anda.
ConnectUPS-BD SNMP/Web Card Memungkinkan pemantauan UPS melalui Web atau SNMP
Environmental Monitoring Probe Memungkinkan pengawasan jarak jauh untuk temperature, kelembaban dan dua alat contact lainnya (memerlukan Web / SNMP card)
Relay Card - BD (AS/400 Compatible) Memberikan antarmuka kontak kering antara UPS Anda dan komputer yang terhubung relai, termasuk AS/400, serta berbagai aplikasi industri.

Fitur Eaton 9130 Rackmount

• Mengurangi biaya dan penggunaan energi dengan efisiensi > 95% dalam modus efisiensi tinggi
• Menghemat ruang rak dengan faktor bentuk 2U yang sudah termasuk baterai internal dan kit rel 4-pos
• Memberikan lebih banyak daya sesungguhnya (watts) untuk melindungi lebih banyak peralatan dan memberikan ruang untuk sistem TI yang berkembang dengan faktor daya 0,9
• Memudahkan pemantauan dan pengelolaan UPS dengan LCD antarmuka pengguna yang terang, software gratis untuk pengelolaan data yang intuitif dan layanan opsional eNotify Remote Monitoring
• Memperpanjang usia baterai dan uptime sistem dengan teknologi baterai ABM dan hot-swappable batteries
• Memaksimalkan runtime dengan extended battery modules opsional

Download Sheet

Baterai
Eaton 9130 1000 Rack EBM 2U Extended Battery Module (EBM) 2U memberikan runtime tambahan untuk UPS Eaton 9130 700 dan 1000 rack sampai 4 EBM dapat dipasang di setiap UPS
Eaton 9130 1500 Rack EBM 2U Extended Battery Module (EBM) 2U memberikan runtime tambahan untuk UPS Eaton 9130 1500 rack sampai 4 EBM dapat dipasang di setiap UPS
Eaton 9130 3000 Rack EBM 2U Extended Battery Module (EBM) 2U memberikan runtime tambahan untuk UPS Eaton 9130 2000 dan 3000 rack sampai 4 EBM dapat dipasang di setiap UPS

Power Management Connectivity
Network and MODBUS Card-MS Menyediakan sistem monitoring UPS jarak jauh yang akurat serta berkelanjutan
Network Card-MS Menyediakan pengawasan serta pengaturan secara real time untuk UPS yang berada didalam Network anda.
ConnectUPS-BD SNMP/Web Card Memungkinkan pemantauan UPS melalui Web atau SNMP
Environmental Monitoring Probe Memungkinkan pengawasan jarak jauh untuk temperature, kelembaban dan dua alat contact lainnya (memerlukan Web / SNMP card)
Relay Card - BD (AS/400 Compatible) Memberikan antarmuka kontak kering antara UPS Anda dan komputer yang terhubung relai, termasuk AS/400, serta berbagai aplikasi industri.

Fitur Eaton 9PX

• Membantu anda mengubah UPS setting, memantau beban dan informasi pemakaian power melalui interface interaktif grafis layar LCD
• Energi efisien (mencapai 95% pada mode Online, 98% pada mode high efficiency)
• Generasi terdepan dengan display grafis LCD (7 bahasa)
• Menyediakan lebih besar power real (watts) untuk melindungi lebih banyak perangkat dengan power factor 0,9
• Pengoperasian Parallel menggunakan tekonologi HotSync
• Maintenance By Pass tersedia sebagai option
• Besaran Energy metering kWh dapat di monitor melalui LCD atau Eaton’s Intelligent Power Software Suite
• Kompatibel dengan perangkat virtual (Vmware, Hyper-V, Citrix Xen, Redhat)

Download Sheet

Parallel/Redundant Operation
Eaton 9PX ModularEasy 6000i
Eaton 9PX ModularEasy 11000i

Baterai
Eaton 9PX EBM 180V Extended battery Module untuk Eaton 9PX UPS 5KVA dan 6KVA UPS dengan rack mounting kit
Eaton 9PX EBM 240V Extended battery Module untuk Eaton 9PX UPS 8KVA dan 11KVA UPS dengan rack mounting kit
Eaton Supercharger 240VDC Super charger untuk 8KVA dan 11KVA models untuk waktu backup battery yang lama
Eaton Battery Integration System Battery integration system untuk menempatkan beberapa EBM
Eaton 1,8m kabel 180V EBM Memperpanjang jarak antara EBM dan UPS
Eaton 1,8m kabel 240V EBM Memperpanjang jarak antara EBM dan UPS

Power Management Connectivity
Network Card-MS Menyediakan pengawasan serta pengaturan secara real time untuk UPS yang berada didalam Network anda.
Relay Card-MS Menyediakan dry-contact interface antar UPS anda dan relay yang terhubung ke computer, termasuk AS/400, dan juga berbagai penerapan industry lainnya.
Network and MODBUS Card-MS Menyediakan sistem monitoring UPS jarak jauh yang akurat serta berkelanjutan

Power Distribution and Bypass
Eaton HotSwap MBP 11000i 3:1 External Maintenance bypass panel untuk 6KVA, 8KVA dan 11KVA UPS
Eaton HotSwap MBP 6000i External Maintenance bypass panel untuk 5KVA dan 6KVA UPS
Eaton HotSwap MBP 11000i 1:1 External Maintenance bypass panel untuk 8KVA dan 11KVA UPS
Eaton Transformer 11000i Isolation transformer untuk 9PX UPS 5KVA / 6KVA / 8KVA / 11KVA

Piranti Keras Pemasangan
Eaton Rack kit 9PX Eaton Rail kit for 9PX UPS dan EBM

Aksesoris
Eaton 9PX 6000i Power Module 3:1
Eaton 9PX 8000i Power Module 3:1
Eaton 9PX 11000i Power Module 3:1
Eaton 9PX 8000i Power Module 1:1
Eaton 9PX 11000i Power Module 1:1

Fitur Eaton 9155

• Desain ringkas dengan baterai internal, dan saklar statis dan bypass manual yang terintegrasi, memberikan solusi lengkap dengan footprint kecil dan kepadatan daya yang terdepan di industri
• Memberikan lebih banyak daya dengan faktor daya keluaran optimal 0,9 sehingga mengurangi kebutuhan untuk kebesaran. Dengan power factor control (PFC) aktif, faktor daya masukan 0,99 yang tak tertandingi dan ITHD yang lebih kecil dapat diperoleh untuk memastikan kompatibilitas lebih tinggi dengan peralatan hulu lainnya
• Cadangan yang dapat diandalkan semakin diperkuat dengan Advanced Battery Management (ABM™) yang menggunakan sistem pengisian baterai tiga tahap sehingga memperpanjang usia baterai secara signifikan
• Ketersediaan dan reliabilitas tertinggi diperoleh dengan teknologi paralel HotSync yang memungkinkan paralel sampai empat UPS 9155 untuk kapasitas tambahan atau redundansi
• LCD antarmuka yang user friendly dengan berbagai pilihan konektivitas, membuat 9155 mudah digunakan dan aman dioperasikan
• Teknologi dan desain yang inovatif menjadikan 9155 solusi berkelanjutan dengan memberikan efisiensi sistem yang tinggi dan kepadatan daya

Rating	8 kVA	10 kVA	12 kVA	15 kVA	20 kVA	30 kVA
Part number	9155-8-S 9155-8-N	9155-10-S 9155-10-N	- 9155-12-N	- 9155-15-N	- 9155-20-N	- 9155-30-N
Capacity (kVA/kilowatts)	8 / 7.2	10 / 9	12 / 10.8	15 / 13.5	20 / 18	30 / 27
Dimensions WxDxH (mm)	305x702x817	305x702x817	305x702x817	305x702x817	494x762x1684	494x762x1684
With extra runtime	305x702x1214	305x702x1214	305x702x1214	305x702x1214	-	-
Weight (kg) UPS without Batteries UPS with internal 1xBAT UPS with internal 2xBAT UPS with internal 3xBAT UPS with internal 4xBAT	75 155 265 N/A N/A	75 155 265 N/A N/A	75 160 270 N/A N/A	75 160 270 N/A N/A	200 300 400 500 600	200 N/A 400 500 600
Input connection	Hardwired	Hardwired	Hardwired	Hardwired	Hardwired	Hardwired
Output connection	Hardwired	Hardwired	Hardwired	Hardwired	Hardwired	Hardwired
*Typical runtime with 1xBAT Typical runtime with 2xBAT Typical runtime with 3xBAT Typical runtime with 4xBAT	15 min 33 min N/A N/A	10 min 25 min N/A N/A	8 min 20 min N/A N/A	5 min 15 min N/A N/A	5 min 13 min 22 min 31 min	N/A 7 min 13 min 20 min
Operational
Nominal input voltage (Vac)	S models: 220/230/240 Vac single phase; N models: 220/380, 230/400, 240/415 Vac three phase
Input voltage range	175/305V - 276/478V at 100% load, 115/200V - 276/478V at 50% load
Operating frequency	50/60 Hz (45 to 65 Hz)
Input power factor	0.99
Input current distortion	5% THD in normal network condition
Nominal output voltage	220/230/240 VAC single phase
Output voltage regulation	±2% static; ±5% dynamic at 100% load change, < 1 ms response time
Overload capacity	150% for 5 sec / 125% for 1 min (online), 1000% for 20 msec (bypass)
Efficiency	92% with computer load; 93% with linear load
User interface
LCD-display	Graphical LCD with blue backlight, English, German and Spanish languages, extendable
LED	4 LED for notice and alarm
Standard communication ports	1 x RS232 for local support, 2 x X-slot (empty); 1 x relay contact, 1 x emergency power off input, 2 x environmental input
Optional	External battery cabinets; isolation transformer; external mechanical bypass switch; X-slot; Web/SNMP, Modbus/Jbus, relay card, RS232 port, Hot Sync card
Environmental
Operating temperature	0ºC to +40ºC
Storage temperature	-15ºC to +40ºC
Altitude	< 1000 m at +40ºC, < 3000 m at +25ºC
Audible noise at 1 metre	< 50 dB(A) at 1 metre
Certification
Quality	ISO 9001; 2000 and ISO 14001:1996
Markings	CE and GOST markings / C-Tick
Safety	IEC 62040-1-1, IEC 60950, EN 62040-1-1
EMC	EN 50091-2 Class A, C-Tick

Download Sheet

Baterai
Eaton 9155 EBM 64 Extended Battery Module (EBM) memberikan runtime tambahan untuk UPS Eaton 9155
Eaton 9155 EBM 96 Extended Battery Module (EBM) memberikan runtime tambahan untuk UPS Eaton 9155

Power Management Connectivity
Environmental Monitoring Probe Memungkinkan pengawasan jarak jauh untuk temperature, kelembaban dan dua alat contact lainnya (memerlikan Web / SNMP card)
Relay Card Memberikan antarmuka kontak kering antara UPS Anda dan komputer yang terhubung relai, termasuk AS/400, serta berbagai aplikasi industri.
Modbus Card Memberikan pemantauan jaringan yang kontinu, dapat diandalkan dan akurat untuk sistem UPS melalui Building Management System (BMS).
Industrial Relay Card Industrial Relay Card & Display X-Slot Card
CAN Bridge Card CAN Bridge Card untuk memparalelkan unit dan/atau antarmuka RMP/RIM/SCM. x2 untuk N+1, x3 untuk N+2
Alarm Serial Card

Power Distribution and Bypass
Eaton ePDU Enclosure Power Distribution Unit mendistribusikan daya ke 4 sampai 45 reseptakel dalam lingkungan rak dengan kepadatan tinggi. Arsitektur plug and play mengatur distribusi daya, menyederhanakan pengelolaan kabel dan memungkinkan Anda menambah dan mengganti peralatan TI tanpa juru listrik.

Fitur Eaton 9E

• Online double conversion topology
• Intuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS status
• Provides more real power (watts) to protect more equipment with a 0.8 power factor
• Internal bypass and maintenance bypass are available as standards
• Combo input (3:1 and 1:1) on the 10KVA, 15KVA, 20KVA
• XL models with internal supercharger for extra-long runtime
• Communication through USB, RS232 serial or over the network with an optional network card
• Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
• CE compliance certified by external agency (CB report from the TUV)

Download User Manual

Baterai
Eaton 9E EBM 180V
Eaton 9E EBM 240V
Eaton 9E EBM 480V

Power Management Connectivity
Network Card-MS Menyediakan pengawasan serta pengaturan secara real time untuk UPS yang berada didalam Network anda.
Relay Card-MS Menyediakan dry-contact interface antar UPS anda dan relay yang terhubung ke computer, termasuk AS/400, dan juga berbagai penerapan industry lainnya.
Network and MODBUS Card-MS Menyediakan sistem monitoring UPS jarak jauh yang akurat serta berkelanjutan.

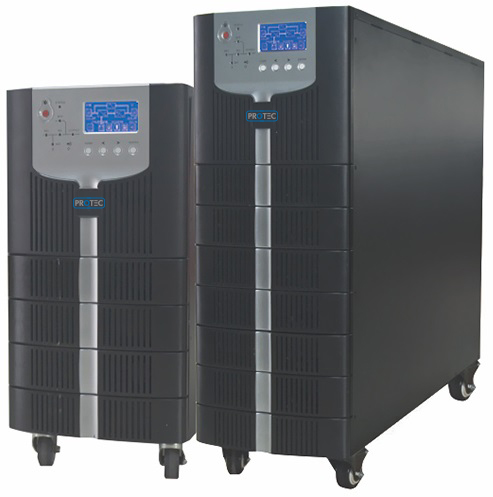

Features
High reliability

• Advanced DSP digital control technology is applied to rectifier and inverter
• Fan speed varies intelligently with temperature, reducing noise and increasing its service life
• Rear ventilation design, fan operating in slow speed, UPS being able to work for a long time in harsh environment
• Effective software and hardware protection function, powerful self-diagnostic function and abundant historical log
• Advanced digital parallel redundant configuration for power system not only greatly improve system reliability, reduce MTTR, but also allows users to multiply capacity and uptime for future expansion by adding additional UPS systems

High availability

• Wide input voltage range, self-adaptive 50Hz /60 Hz grid system, suitable for various grid environments
• Linear derating in low voltage input, reducing battery discharging time, extending the service life of battery
• Dual input design, independent bypass available
• Output power factor improved from 0.8 to 0.9, load-carrying capacity increased by 13%
• Flexible and optimized battery number design with different DC voltage for more economical battery usage and costs (168/192/216/240Vdc optional), and two UPS models (Standard model or Extensible model) for options
• Doubling the battery charging speed, 90% capacity restored in 4 hours for standard model UPS, and higher charging current available for extensible model
• Cold start: Ability to switch on the UPS with batteries in the absence of mains power
• UPS power supply mode has no transfer time to ensure uninterruptible power
• Configurable switching time from battery mode to mains mode when mains power is restored, reducing the impact on power grid or generator
• Frequency conversion mode: 50Hz input / 60Hz output or 60Hz input / 50Hz output

High usability

• LCD+LED display, multi-functional keys operation, friendly human-machine interface
• Powerful background software for parameters configuration, online updating
• Compact internal layout, miniaturized the complete unit for small footprint
• Standard Emergency Power Off (EPO), standard maintenance bypass

High Intelligence

• Advanced multi-platform communications: standard RS232 & USB, optional RS485, SNMP and dry contacts communication interfaces are used for monitoring UPS running status. Among them, SNMP is for remote network monitoring and management, by which can configure regular battery self test
• Advanced battery management (ABM), automatic floating / equalizing charge control, charger dormancy control, improving the reliability of charger and extending battery service life by 50%

Energy conservation and environment protection

• Active power factor correction (APFC), input power factor up to 0.99
• Work efficiency up to 98% in ECO mode
• Auto power ON/OFF according to the load capacity set by users

Download Sheet

Fitur Eaton 93E XL

• Biaya operasional yang rendah hingga tingkat efisiensi 98%
• Teknologi Powerware Hot Sync® yang dipatenkan memungkinkan untuk membuat UPS mampu diatur parallel hingga 4 unit guna meningkatkan kapasitas
• Baterai internal dengan daya hidup yang lama, khusus di design untuk menghemat tempat dan tidak memerlukan tambahan rak
• Daya hidup yang fleksibel dan dapat disesuaikan, mampu menghantarkan backup daya selama 30 menit untuk 40kVA
• Tampilan LCD yang besar untuk memperlihatkan status dari UPS dan dilengkapi dengan akses yang mudah untuk pengukuran, control dan pengaturan
• Intelligent Power Manager Software dapat memonitor dan mengatur sejumlah perangkat daya yang ada di jaringan anda
• Dirancang guna memaksimalkan kinerja di bidang fasilitas maupun IT

Daya
Rating	10kVA/9kW	15kVA/13.5kW	20kVA/18kW	30kVA/27kW	40kVA/36kW
Topologi	Konversi-ganda online UPS
Frekuensi Oprasi	50/60 Hz (40 hingga 72 Hz)
Factor masukan daya	>0.99 tipikal
Distorsi masukan arus	≤5% THD
Masukan elektrik
Nominal masukan tegangan	400/230V, 4 kabel (380/415V dapat dipilih)
Tingkat tegangan input	-15%, +20% Dari angka (400V) pada beban 100% tanpa menghabiskan baterai
Keluaran elektrik
Nominal output tegangan	400/230, 4 kabel (380/415V dapat dipilih)
Variasi tegangan output	(±1% Statis; <5% Dinamis pada perubahan beba resistif 100%, <20 ms waktu respon
Baterai
Baterai	432V (216 Cells * 6 strings(max), Dengan baterai internal default)
Metode pengisian	ABM Cyclic Charging
Umum
Efisiensi	Mode >98% High-efficiency Mode >94% Double-conversion
Overload	150% untuk 1 menit, 125% untuk 10 menit,> 150% untuk 150ms
UPS bypass	Otomatis jika UPS mengalami overload atau tidak berfungsi
Parallel technology	Hot Sync® Technology
Dimensi Lebar x Diamter x Tinggi (mm)	600 x 800 x 1876
Cabinet rating	IP20 dengan filter debu yang bisa dicuci
Berat dengan 6 strings baterai internal	10kVA 770kg 15kVA 770kg 20kVA 770kg 30kVA 780kg 40kVA 790kg
Komunikasi
Tampilan	Grafis LCD dengan backlight biru
LEDs	4x LEDs untuk notifikasi dan alarm
Suara alaram	Ya
Port komunikas	(1) RS-232, (1) USB, (1) EPO
Slot komunikasi	(2) Mini-slot communication bays
Environmental
Temperatur pengoperasian	0ºC to +40ºC Suhu baterai disarankan maksimal. +25ºC
Temperature penyimpanan	-25ºC to +55ºC Dengan baterai +15ºC to +25ºC Tanpa baterai
Tingkat kelembaban	5–95%, Non-kondensasi
Tingkat kebisingan	10kVA ≤55 dB(A) Pada jarak 1m 15kVA ≤55 dB(A) Pada jarak 1m 20kVA ≤55 dB(A) Pada jarak 1m 30kVA ≤62 dB(A) Pada jarak 1m 40kVA ≤62 dB(A) Pada jarak 1m
Ketinggian	<1000m at +40°C
Certifications
EMI standards	EN55022/EN55024
Pemenuhan EMC	IEC 62040-2
Kualitas	ISO 9001: 2000 dan ISO 14001:1996
Communication Accessories
Network-MS	Web/SNMP Card
Modbus-MS	Web/SNMP dan Modbus Card
Relay-MS	Relay (Dry Contact) Card -DB9 Connection
Industrial Relay	Relay (Dry Contact) Card -Terminal Connection
116750224-001	Environmental Monitor Probe (EMP) kit (harus disambungkan ke Web/SNMP Card atau Web/SNMP dan Modbus Card agar berfungsi)

Dikarenakan produk yang terus dikembangkan, spefisifikasi bisa berubah setiap saat tanpa pemberitahuan.

Scalable Runtime *
Rating Daya	Model No.	Backup Time (min)
10kVA	93EXL-10-2S-40M-E 93EXL-10-3S-60M-E 93EXL-10-4S-90M-E	40 60 90
15kVA	93EXL-15-3S-40M-E 93EXL-15-4S-55M-E 93EXL-15-5S-72M-E 93EXL-15-6S-92M-E	40 55 72 92
20KVA	93EXL-20-3S-27M-E 93EXL-20-4S-40M-E 93EXL-20-5S-50M-E 93EXL-20-6S-60M-E	27 40 50 60
30KVA	93EXL-30-3S-15M-E 93EXL-30-4S-24M-E 93EXL-30-5S-30M-E 93EXL-30-6S-40M-E	15 24 30 40
40kVA	93EXL-40-4S-15M-E 93EXL-40-5S-22M-E 93EXL-40-6S-27M-E	15 22 27

*Catatan: Waktu backup (min) berdasarkan kondisi UPS 80% terisi dan beban pada 0,9PF

Download Sheet

Power Management Connectivity
Environmental Monitoring Probe Memungkinkan pengawasan jarak jauh untuk temperature, kelembaban dan dua alat contact lainnya (memerlukan Web / SNMP card)
Industrial Relay Card Industrial Relay Card & Display X-Slot Card
Network Card-MS Menyediakan pengawasan serta pengaturan secara real time untuk UPS yang berada didalam Network anda.
Relay Card-MS Menyediakan dry-contact interface antar UPS anda dan relay yang terhubung ke computer, termasuk AS/400, dan juga berbagai penerapan industri lainnya
Network and MODBUS Card-MS Menyediakan sistem monitoring UPS jarak jauh yang akurat serta berkelanjutan

Features
High reliability

• Advanced DSP digital control technology
• True On-line double conversion technology with strong carrying capacity
• Modular design with high reliability and easy to maintenance
• Effective software and hardware protection function, robust self-diagnostic function and abundant historical log for future check
• Three-level password control technology, including the power-on password, user password and maintenance password control
• Advanced digital parallel redundant configuration (up to 6 units) for power system not only greatly improve system reliability, reduce MTTR, but also allows users to multiply capacity and uptime for future expansion by adding additional UPS systems

High availability

• Dual input distribution makes system availability higher
• Wide input voltage range, self-adaptive 50Hz /60 Hz grid system, suitable for various grid environments
• Linear derating in low voltage input, reducing battery discharging times, extending the service life of battery
• Input power factor closes to 1, harmonic distortion of current is very low, and output power factor 0.9 enable UPS to deliver more power and increase the load capacity
• Frequency conversion mode: 50Hz input / 60Hz output or 60Hz input / 50Hz output
• Users can choose share battery pack to save cost or separate battery pack for different UPS with longer automation time
• Battery cold start and mains restoration auto-restart are available
• Optional built-in output isolation transformer meets customer’s special requirement on electric isolation on UPS output

High usability

• 5.7 inches LCD touch screen, multi-functional keys operation, friendly human-machine interface
• Robust background software for parameters configuration, online updating
• Compact internal layout, miniaturized the complete unit for small footprint
• Standard Emergency Power Off (EPO)

High intelligence

• Advanced multi-platform communications: standard RS232 / USB / RS485 / dry contacts, optional SNMP communication interfaces are used for monitoring UPS running status
• Advanced intelligent battery management technique, digitized charger with flexible charger parameters setting and battery configuration (32 / 34 / 36 / 38 / 40 pcs selectable)
• When the batteries are out of warranty, the system will remind you

Energy conservation and environment protection

•  Active power factor correction (APFC), input power factor up to 0.99
• Work efficiency up to 98.5% in ECO mode

Download Sheet

Fitur Eaton 93E

• Biaya operational yang rendah dengan efisiensi 98.5%
• Teknologi Eaton Hot Sync® yang sudah paten menyediakan kemampuan parallel maksimum sampai 4 UPS untuk meningkatkan ketersediaan maupun penambahan kapasitas
• Tampilan yang ringkas, 30% lebih kecil dibandingkan dengan perangkat lain dikelasnya
• Graphic LCD UPS yang besar menampilkan status dan kemudahan akses untuk penghitungan daya, kontrol dan setting
• Intelligent Power Manager Software Monitor dan mengatur banyak perangkat power di seluruh network anda
• Advanced Battery Management meningkatkan umur battery, kestabilan dan dapat diperkirakan

Power
Ratings	15kVA/13.5kW, 20kVA/18kW, 30kVA/27kW, 40kVA/36kW, 60kVA/54kW, 80kVA/72kW, 100kVA/90kW, 120kVA/108kW, 160kVA/144kW, 200kVA/180kW, 300kVA/270kW, 400kVA/360kW, 500kVA/450kW
Topology	Double-conversion online UPS
Electrical Input
Nominal input voltage	400/230V, 4 wire (380/415V selectable)
Input voltage range	-15%, +20% from nominal (400V) at 100% load without depleting battery
Operating frequency	50/60 Hz (40 to 72 Hz)
Input power factor	>0.99 typical
Input current distortion	≤5% THD
Electrical Output
Nominal output voltage	400/230, 4 wire (380/415V selectable)
Output voltage regulation	±1% Static; ±5% dynamic at 100% resistive load change, <20 ms response time
Battery	192 to 240 Cells (Continual selectable for 15-80kVA) 216/222/228/234/240 Cells (Selectable for 100-500kVA)
Charging method	ABM Cyclic Charging
General
Efficiency	>98% High-efficiency mode (15-80kVA) >98.5% High-efficiency mode (100-300kVA) >99% High-efficiency mode (400-500kVA) >94% Double-conversion mode (15-300kVA) >95% Double-conversion mode (400-500kVA)
UPS bypass	Automatic on overload or UPS failure
Parallel technology	Powerware Hot Sync® Technology
Dimensions W x D x H	500 x 710 x 960 (mm) 15-20kVA (with internal battery) 500 x 710 x 1230 (mm) 30kVA (with internal battery) 500 x 710 x 1500 (mm) 40kVA (with internal battery) 600 x 800 x 1876 (mm) 60-200kVA 1600 x 820 x 1880 (mm) 300/500kVA
Cabinet rating	IP20 with standard washable dust filters
Weights without internal battery	15/20kVA-72kg, 30kVA-88kg, 40kVA-120kg, 60kVA-202kg, 80kVA-245kg, 100kVA-283kg, 120kVA-311kg, 160/200kVA-457kg, 300kVA-860kg, 400kVA-970kg, 500kVA-1020kg
Weights with internal battery	15/20kVA-272kg, 30kVA-376kg, 40kVA-490kg
Overload	150% for 1 minute, 125% for 10 minutes, >150% for 150ms
Communications
Display	Graphical LCD with blue backlight
LEDs	(4) LEDs for notice and alarm
Audible alarms	Yes
Communication ports	(1) RS-232, (1) USB, (1) EPO
Communication slots	(2) Mini-slot communication bays
Environmental
Operating temperature	0ºC to +40ºC Batteries recommended max. +25ºC
Storage temperature	-25ºC to +55ºC without batteries +15ºC to +25ºC with batteries
Relative humidity	5–95%, non-condensing
Audible noise	15-20kVA≤55 dBA at 1m typical 30-40kVA ≤62 dBA at 1m typical 60-120kVA ≤65 dBA at 1m typical 160-200kVA ≤70 dBA at 1m typical 300-400kVA ≤73 dBA at 1m typical 500kVA ≤75dBA at 1m typical
Altitude	<1000m at +40°C
Certifications
EMI standards	EN55022/EN55024
EMC compliance	IEC 62040-2
Quality	ISO 9001: 2000 and ISO 14001:1996
Communication Accessories
Network-MS	Web/SNMP Card
Modbus-MS	Web/SNMP and Modbus Card
Relay-MS	Relay (Dry Contact) Card -DB9 Connection
Industrial Relay	Relay (Dry Contact) Card -Terminal Connection
116750224-001	Environmental Monitor Probe (EMP) kit (need to plug into Web/SNMP Card or Web/SNMP and Modbus Card to work)
System Accessories
Battery Cabinets & Battery Circuit Breakers (60-200kVA)
Maintenance Bypass Switches (MBS) (100-200kVA, standard on 15-80kVA)
Top Cable Entry (60-200kVA, standard on 300-500kVA)
System Parallel Modules (60-200kVA)
Dual input kit (15-80kVA)
IP21 hood (15-200kVA)
Rear Chimney (60-200kVA)

In the interests of continuous product improvement all specifications are subject to change without notice.

Download Sheet

Power Management Connectivity
Network Card-MS Menyediakan pengawasan serta pengaturan secara real time untuk UPS yang berada didalam Network anda.
Relay Card-MS Menyediakan dry-contact interface antar UPS anda dan relay yang terhubung ke computer, termasuk AS/400, dan juga berbagai penerapan industri lainnya
Network and MODBUS Card-MS Menyediakan sistem monitoring UPS jarak jauh yang akurat serta berkelanjutan

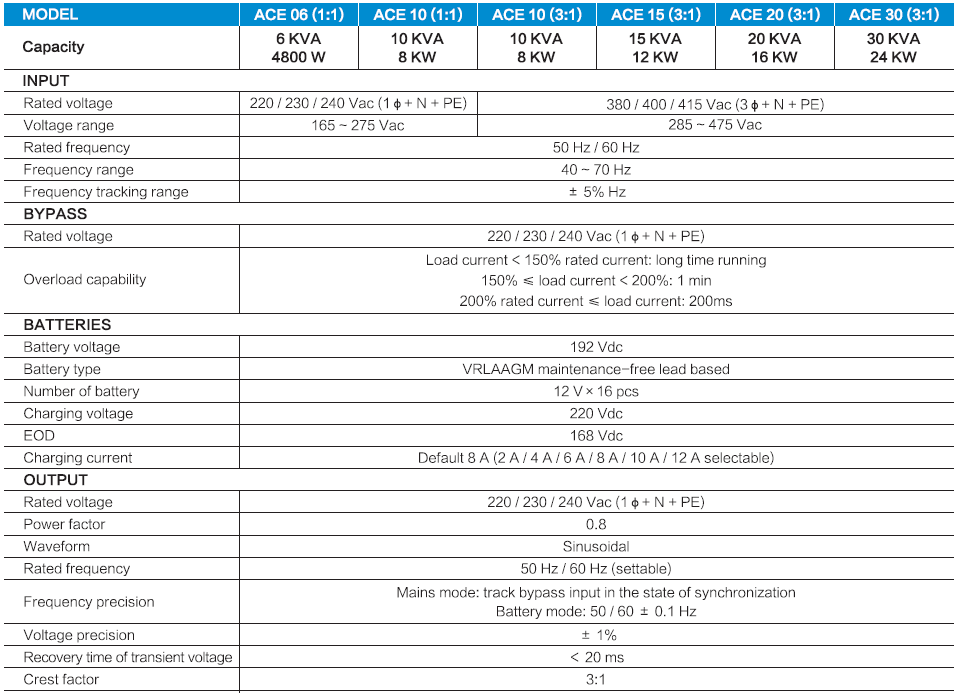

Features

High reliability

• Advanced DSP digital control technology bring ACE UPS high precision, fast speed, simple control circuit and high reliability
• Standard configuration with output isolation transformer, which prevent the harm to equipment caused by DC component of UPS output voltage, effectively reduce neutral to earth voltage of output and effectively decrease the direct interference from the harmonic currents of loads to improve the UPS reliability
• High overload capability (up to 150%)
• Bypass powered by independent power supply, and inside using dual DSP redundant design. When the main control system is abnormal or fails, the bypass system can still work normally to ensure uninterruptible power supply to loads
• Superior protection (surge, short-circuit, overvoltage, under-voltage, over-charge, reverse connection protection etc), especial IGBT drive circuit and IGBT over-current soft-shutdown technology greatly improve the reliability and safety of the inverter
• Advanced parallel redundant configuration with current sharing control technology which not only greatly improve system reliability, reduce MTTR, but also allows users to multiply capacity and uptime for future expansion by adding additional UPS systems

High usability and availability

• Single / single-phase models, and three / single-phase models for 380 / 400 / 415 V, 50 / 60 Hz grid system
• Wide input voltage and input frequency range make the UPS convenient to connect the generator or other power-generation equipment
• Strong compatibility, suitable for all kinds of loads (resistive, inductive, capacitive and non-linear loads)
• Dual input and hot standby in series make the system more reliable and available
• Battery cold start and mains power start are available. In the absence of mains power, battery cold start function allows users to start the UPS with the batteries to meet the emergency, and in the absence of batteries, users can start the UPS with the utility power and use it as high-precision regulated power supply
• LCD+LED display with friendly user interface and multi-functional button operation.
• Abundant historical log available for future to retrieve and when fault occurs the fault code display on the screen will help maintenance personnel exclude the cause of issue

High intelligence

• Advanced multi-platform communications: standard RS232 / USB, optional RS485 / dry contacts, SNMP communication interfaces are used for monitoring UPS running status
• Advanced intelligent battery management technology with powerful charging capability and flexible charging parameters setting: 2 A / 4 A / 6 A / 8 A / 10 A / 12 A selectable (standard configuration), 14 A / 16 A / 18 A / 20 A / 22 A / 24 A selectable (optional configuration)

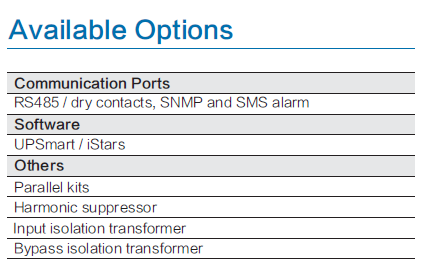

Download Sheet

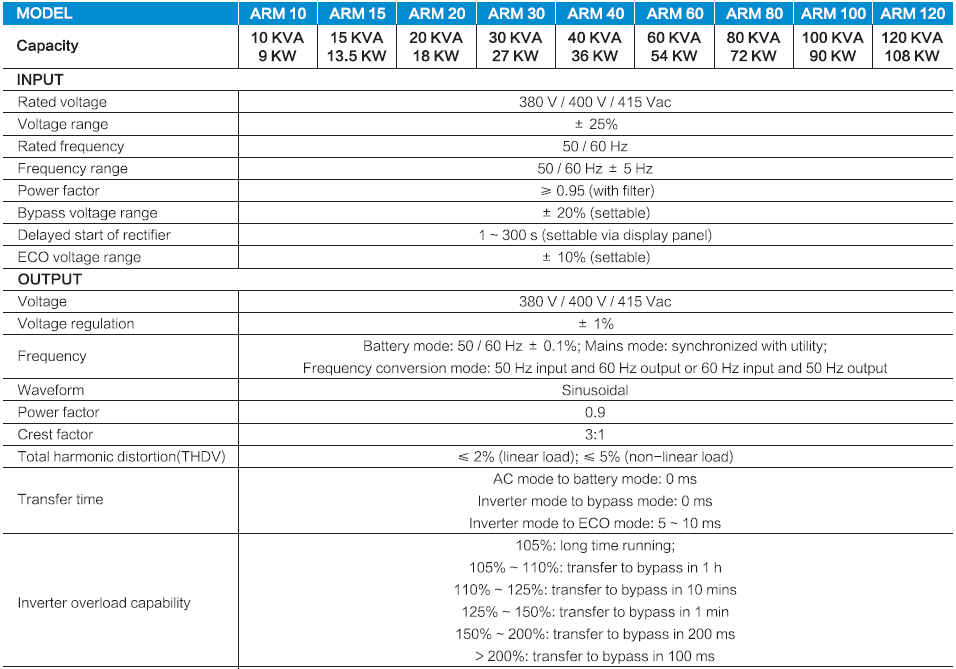

Features
High reliability

• Intelligent digital control
• Permissible 100% load unbalance
• Built-in output isolation transformer
• Full isolation of input and output avoid risk of DC sneaking into loads
• High overload capability
• Extra long MTBF (> 200,000h) and short MTTR (< 0.5h)
• Batteries are directly connected to BUS line, and output has strong impact resistance capacity
• Intelligent self-diagnosing function and superior protections (short-circuit, overload, over-temperature, overvoltage, under-voltage, over-current, battery low voltage and fan failure protections)
• Advanced parallel redundant configuration (up to 6 units) for power system not only greatly improve system reliability, reduce MTTR, but also allows users to multiply capacity and uptime for future expansion by adding additional UPS systems
• ECO mode and EPO (Emergency Power Off) mode

High usability and availability

• Three / three-phase models for 380 / 400 / 415 V, 50 / 60 Hz grid system
• Unique ventilation design, compact whole structure for small footprint
• Similar modular design makes field maintenance quick and easy
• Front access makes maintenance and replacement easy (50 ~ 120 KVA)
• Abundant historical log (10000 records) available for future check
• Flexible and optimized battery number design (28 ~ 32 pcs optional)
• Strong compatibility, suitable for all kinds of loads (resistive, inductive, capacitive and non-linear loads)
• 5.7 inches LCD touch screen with friendly human-machine interface, supports touch screen and multi-functional button operation
• Battery cold start and mains power start are available. In the absence of mains power, battery cold start function allows users to start the UPS with the batteries to meet the emergency, and in the absence of batteries, users can start the UPS with the utility power and use it as high-precision regulated power supply

High intelligence

• Powerful network monitoring management with multi-platform communications: standard RS232 / RS485 / dry contacts, optional SNMP communication interfaces are used for monitoring UPS running status
• Advanced intelligent battery management (ABM)
• Use integrated design of rectifier / charger, set up parameters on interface according to the configured battery capacity and automatically adjust the charging current by software, meanwhile enable to set the time of battery self-test and charge / discharge interval according to the grid security situation to extend the lifetime of the battery

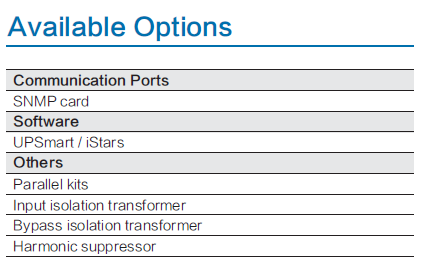

Download Sheet

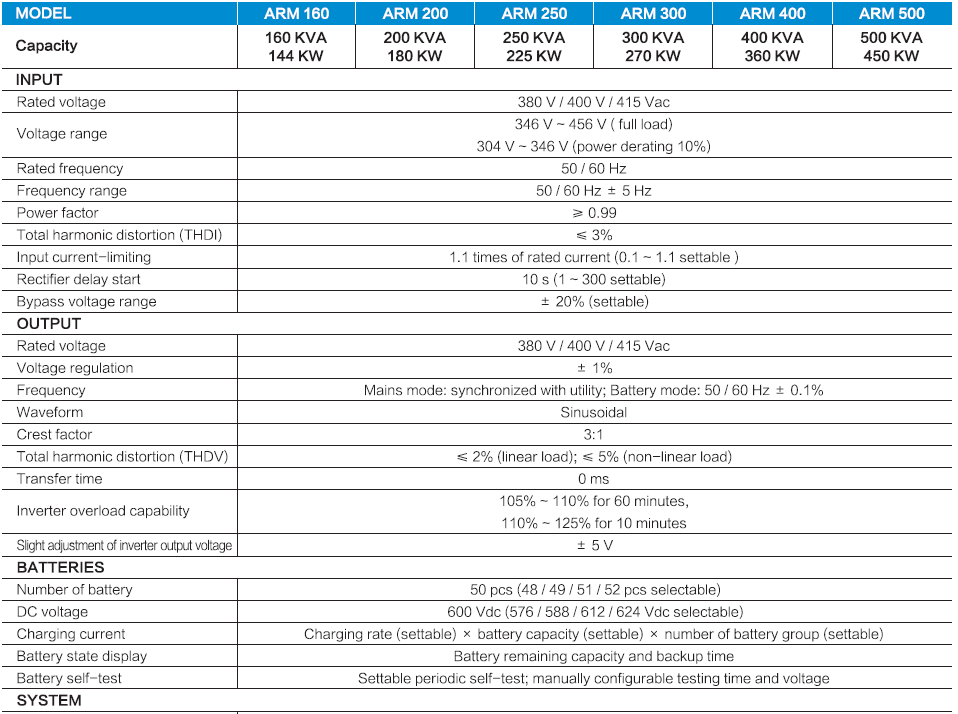

Features
High reliability

• Intelligent digital control
• Permissible 100% load unbalance
• Built-in output isolation transformer
• Full isolation of input and output avoid risk of DC sneaking into loads
• Extra long MTBF (> 200,000 h) and short MTTR (< 0.5 h)
• Latest IGBT rectifier technology, high input power factor up to 0.99 and low harmonic current to provide high efficiency, energy saving and environmental protection
• High overload capability
• High efficiency at light load, reducing operating cost
• ECO mode and EPO (Emergency Power Off) mode
• Batteries are directly connected to BUS line, and output has strong impact resistance capacity
• Intelligent self-diagnosing function and superior protections (short-circuit, overload, over-temperature, overvoltage, under-voltage, over-current, battery low voltage and fan failure protections)
• Advanced parallel redundant configuration (up to 6 units) for power system not only greatly improve system reliability, reduce MTTR, but also allows users to multiply capacity and uptime for future expansion by adding additional UPS systems

High usability and availability

• Three / three-phase models for 380 / 400 / 415 V, 50 / 60 Hz grid system
• Excellent compatibility with generators
• Unique ventilation design, compact whole structure for small footprint
• Similar modular design makes field maintenance quick and easy
• Front access makes maintenance and replacement easy, being placed up against the wall save room space
• Two cable entry systems: bottom cable entry and side cable entry
• Abundant historical log (10000 records) available for future check
• Flexible and optimized battery number design (48 / 49 / 50 / 51 / 52pcs optional)
• Strong compatibility, suitable for all kinds of loads (mixed, resistive, inductive, capacitive and non-linear loads)
• 5.7 inches LCD touch screen with friendly human-machine interface, supports touch screen and multi-functional button operation
• Battery cold start (optional): in the absence of mains power, battery cold start function allows users to start the UPS with the batteries to meet the emergency

High intelligence

• Powerful network monitoring management with multi-platform communications: standard RS232 / RS485 / dry contacts, optional SNMP communication interfaces are used for monitoring UPS running status
• Advanced intelligent battery management (ABM)

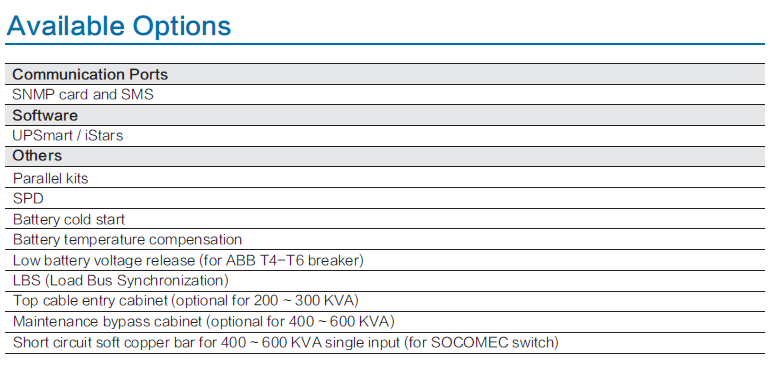

Download Sheet

•    DSP microprocessor control technology
•   True On-line, double conversion power protection, and with strong load capacity
•    Modular Hot-swappable design for easy maintenance and scalability
•    High efficiency up to 96.5% at most frequently-used load rate
•    Inbuilt integrated PDU system simplifying installation and saving investment
•    Output power factor 1.0, input power factor 0.99, input THDi <3%, output THDv ≤ 1%
•    138 ~ 485 Vac wide input voltage range, 50 Hz / 60 Hz grid self-adaptive
•    Soft-start technology improves generator matching up to 1:1.1
•    Support two modes of frequency conversion: 50 Hz input / 60 Hz output and 60 Hz input / 50 Hz output
•    Intelligent hibernation mode upgrading enables UPS to operate efficiently at low load rate
•    Advanced parallel and redundancy technology, support 4 units connected in parallel
•    Share battery pack in parallel operation, saving user’s battery cost
•    Flexible charger parameter and battery configuration settings, battery number 30 ~ 46 pcs selectable
•    Intelligent battery management technology (Intelligent charge/discharge management and float charging voltage temperature compensation), extending battery lifespan
•    Support cold start with battery and auto restart with mains power
•    Self-aging function to simplify debugging and test on site
•    Fault-tolerant design for fan system, taking 30% loads when 2 fans fail and 50% loads when 1 fan fails
•    Superior hardware and software protection function, robust self-diagnostic function, and abundant event log for check
•    7 inches LCD touch screen, friendly human-machine interface
•    System with built-in SNMP, supporting RS485 and dry contacts
•    Back-feed protection function (optional)

Download Sheet

High Frequency

online double-conversion with DSP control

kVA = kW

Thanks to the unity power factor to guarantee maximum real power

Hot Swappable

operation for all modules

Inbuilt Integrated PDU system

easy installation and economic initial investment

Wide Input Voltage Range

50Hz / 60Hz auto sensing frequency

Support Two Modes of Frequency Conversion

50Hz input / 60Hz output and 60Hz input / 50Hz output

Input & Output

Input Power Factor > 0.99, Input THDi ≤ 3%, Output THDV ≤ 5%

Advanced N+X Wireless Parallel

and redundancy technology easily set up different numbers of redundancy UPS module via LCD

Inbuilt Battery Module Available

40 x 12V/9AH for each module

Share Battery Pack

in parallel operation, saving user’s battery cost

System Capacity

up to 160KVA/160KW constructed by each module 20KVA / 20KW, single charger module be equipped with 30 A charging current, 4 modules be configured maximally

Flexible Charger Parameter

and battery configuration setting, selectable battery number: 32 pcs / 34 pcs / 36pcs / 38 pcs / 40 pcs

Advanced Intelligent Battery Management Technique

prolong the working life of battery effectively

Support Battery Cold Start

and mains auto restart

Complete Isolation

between key components and air duct effectively improve the system reliability

Easily Replacable

Fragile Components can be replaced easily as modules at low maintenance cost

Front Accessible Maintenance

top / bottom cable entry compatible

Perfect Protection

for hardware and software (C class lighting protection, circuit breaker, fuse, software and hardware protection), robust self detection, abundant event log for future check

LCD Touch Screen

5.7 inches LCD touch screen, friendly human machine interaction

Standard Emergency Power Off (EPO)
Communication Port

Standard RS232 / USB / RS485 / Dry Contacts Communication Port
Optional SNMP communication port

Optional Battery Temperature Compensation

MODEL
Capacity		80 KW / 80 KVA
Numbers of parallel module		1 ~ 4
Numbers of redundancy module		0 ~ 3
UPS power module		20KVA / 20KW
INPUT
Rated voltage		380V/400V/415Vac
Voltage range		204 ~ 242 Vac (load ≤ 50%); 242 ~ 277 Vac (50% < load ≤ 70%); 277 ~ 520 Vac (70% < load ≤ 100%)
Rated frequency		50 / 60 Hz (auto-sense)
Frequency range		40 ~ 70 Hz
Power factor		≥ 0.99
Total harmonic distortion (THDI)		≤ 3%
Bypass voltage range		Rated output voltage - 40% ~ rated output voltage + 20% (settable via LCD)
OUTPUT
Voltage		380V / 400V / 415 Vac
Voltage regulation		± 1%
Frequency		Synchronized with utility in mains mode; 50 / 60Hz ± 0.1% in battery mode
Power factor		1.0
Waveform		Pure sine wave
Crest factor		3:1
Total harmonic distortion(THDV)		≤ 1% (linear load); ≤ 5% (non-linear load)
Transfer time		0ms
Inverter overload capability		110% ~ 130%: transfer to bypass in 10 mins; 130% ~ 150%: transfer to bypass in 1 min; > 150%: transfer to bypass in 0.5 s
Bypass overload capability		≤ 150%: long time running > 150%: power off in 10s
BATTERIES
DC voltage		± 240 Vdc (options: ± 192 Vdc / ± 204 Vdc / ± 216 Vdc / ± 228 Vdc)
Inbuilt battery of standard model		40 x 12V/9Ah for each module
Charging current		1 ~ 30A / 60A (settable via LCD)
SYSTEM
Efficiency		≥ 94%
Display panel		5.7 Inches LCD touch screen
Alarm		Battery mode, low battery, fans fault etc.
EMI		EN62040-2
EMS		IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge)
COMMUNICATIONS
RS232 / RS485 / USB / dry contacts (standard)		Supports Windows® 98/2000/2003/XP/Vista/2008/7/8/10
SNMP (option)		Power management from SNMP manager and web browser
OTHERS
Humidity		0 ~ 95% RH @ 0 ~ 40°C (non-condensing)
Noise level		≤ 60dB
Module dimensions (mm) WxDxH		482x590x131
Module weight		28kg / power module, 27kg / charger module, 7kg / monitoring module
UPS dimensions (mm) WxDxH		600x1000x1600
UPS packaged dimensions (mm) WxDxH		700x1070x1760
UPS Net/Gross weight (kg) Without inbuilt battery and power module		225 / 245
Input / output / bypass breaker		Yes

Fitur Eaton 93EPR

• Efisiensi konversi ganda yang maksimal

93PR menawarkan efisiensi konversi ganda tertinggi di pasaran, yakni di atas 96%.

• Efisiensi konversi ganda yang dioptimalkan - Variable Module Management System (VMMS)

VMMS dapat mengoptimalkan tingkat beban modul daya dalam satu UPS 93PR atau dalam sistem paralel, yakni dengan menahan kapasitas UPS ekstra. Ini tidak saja menghasilkan efisiensi besar pada tingkat daya yang rendah, tetapi juga efisiensi optimal di semua tingkat beban.

• Energy Saver System menghasilkan efisiensi > 99%

Energy Saver System memungkinkan efisiensi > 99% di seluruh rentang operasi UPS. Dalam ESS, beban ditenagai dengan aman melalui jalur bypass statis lengkap dengan konversi ganda yang bisa sewaktu-waktu digunakan dengan waktu transisi 2 milidetik apabila terjadi ketidaknormalan sumber suplai daya. Dalam mode operasi ESS, beban dilindungi oleh penahan lonjakan.

• Berkemampuan hot-swap dan hot-scalable

Modul daya 93PR dapat diganti atau ditambah selagi modul lain terus melindungi beban. Dengan demikian, tidak perlu lagi melakukan bypass ketika ingin mengganti atau meng-upgrade modul (MTTR: 0 menit). Penggantian dan upgrade (N+1) biasanya memerlukan waktu kurang dari 10 menit.

• Mudah dikelola

93PR menyediakan akses informasi status secara detail melalui layar sentuh LCD besar berukuran 7” yang mudah digunakan. Dengan antarmuka grafis LCD dari 93PR, Anda dapat memantau statistik penghematan listrik, durasi baterai, pelacakan pemadaman listrik, profil beban, dan banyak lagi. Lampu batang LED berwarna hijau/kuning/merah membuat status sistem dapat dipantau dari jauh di dalam pusat data.

• Advanced battery management

Algoritme pengisian daya yang unik membuat masa pakai baterai jauh lebih panjang jika dibandingkan dengan metode pengisian daya biasa. Uji baterai otomatis memastikan segala kerusakan pada baterai terdeteksi, dan blok yang gagal dapat diganti tepat waktu. Data kondisi baterai selalu dapat dilihat dari layar tampilan. Karena dapat memonitor kondisi baterai dan riwayat data pengujian, pemeliharaan sistem pun dapat direncanakan dan dijadwalkan lebih matang jauh-jauh hari.

General
UPS output power rating (1.0 p.f.)	25, 50, 75, 100, 125, 150, 175, 200kW
Efficiency in double conversion mode	> 96%
Efficiency in Energy Saver System (ESS)	> 99%
Static bypass rating	200kW
External paralleling	up to 4 units with HotSync technology
UPS topology	Double conversion
UPS degree of protection	IP20
Acoustic noise at 1 m, in 25 °C ambient temperature	< 70 dBA in double conversion < 55 dBA in ESS
Altitude (max)	1000m above sea level at 40 °C. Maximum 2000m with 1% derating per each add. 100 m
Input
Rated input voltage	220/380 V, 230/400 V, 240/415 V 50/60 Hz
Voltage tolerance - Rectifier input	187 to 276 V
Voltage tolerance - Bypass input	rated voltage -15% / +10%
Rated input frequency Frequency tolerance	50 or 60 Hz, user configurable 40 to 72 Hz
Input wiring	3 phase + neutral
Input power factor at 100% load	> 0.99
Input ITHD	< 3%
Rated input r.m.s current	25kW	50kW	75kW	100kW	125kW	150kW	175kW	200kW
380V	40 A	80 A	120 A	159 A	199 A	239 A	278 A	318 A
400V	38 A	76 A	114 A	151 A	189 A	227 A	264 A	302 A
415V	37 A	73 A	110 A	146 A	182 A	219 A	255 A	291 A
Soft start capability	Yes
Internal backfeed protection	Yes
Output
Output wiring	3 phase + neutral
Rated output voltage rating	220/380 V, 230/400 V, 240/415 V, configurable
Total voltage harmonic distortion	< 1% (100% linear load); < 5% (100% non-linear load)
Output power factor	1.0
Permitted load power factor	0,8 lagging - 0,8 leading
Overload on inverter	10 min 102-110%; 60 sec 111-125%; 10 sec 126-150%; 300 ms > 150%.
Overload on bypass	Continuous < 125%, 20 ms 1000%
Battery
Battery type	12V, VRLA
Charging method	ABM technology or Float
Temperature compensation	Optional
Battery nominal voltage (VRLA)	480 V
Battery quantity	36 to 44 blocks. Default is 40 blocks
Charge current limit	Default 5A, configurable maximum 25A per UPM
Battery start capability	Yes
Communications
Minislot	3 communication bays
Network/SNMP interface	Yes, optional
Serial ports	Built-in host and device USB
Standard connectivity ports	Mini-slot ports for optional cards, Device USB and Host USB, RS-232 service port, relay output, 5 building alarm inputs and a dedicated EPO, Web and SNMP card
Accessories
	MiniSlot connectivity (Web/SNMP, ModBus/Jbus, Relay) External Battery Cabinet(EBC) Parallel Tie Cabinet(PTC) External Maintenance Bypass Switches(EMBS) External Battery Cabinet Breaker(EBCB)
Compliance with standards
Safety	IEC 62040-1
EMC	IEC 62040-2
Performance	IEC 62040-3
Mechanical
Weight without UPM	368kg nett
25kW UPM Weight	28kg nett
UPS dimension (W x D x H)	603 x 1013 x 2050 mm

Due to continuous product improvement programmes, specifications are subject to change without notice.

Download Sheet

Features
Excellent performance and high reliability

• Latest DSP digital control technology
• High input power factor > 0.99, THDi < 3%, high efficiency 96%
• “N+X” wireless parallel and redundancy technology: easily set up numbers of redundancy module on LCD panel, support 4 complete UPS in parallel, avoid single point failure and further strengthen the reliability
• Consistently reliable protection for hardware and software, sophisticated detection inside the UPS, abundant event log for future check
• Fault-tolerant design for fan system: 30% load can be taken when 2 fans fail and 50% load can be taken when 1 fan fails
• High overload capability

105% ~ 110% for 60 minutes, 110% ~ 125% for 10 minutes, 125% ~ 150% for 1 minute

• Intelligent hibernation design enables UPS to operate efficiently at low load rate
• Independent bypass module design and redundant power supply components ensure higher reliability
• Synchronous control function for 2N double bus system

High usability

• 7 inches LCD touch screen provides easy-to-use user interface
• Easy maintenance with hot swappable operation for all modules

Hot-swappable modular design enables users to replace standard modules on-line, no need to turn off the UPS or switch to bypass for maintenance. This feature greatly decrease maintenance time, lower maintenance cost and difficulty

• Load sharing technology

If any of the UPS modules fail, the load will be taken over by the rest of the modules without interruption. This increases the real time operation and power availability

• Easy expandability and scalability

System capacity is scalable up to 600KVA constructed by each power module of 50KVA; each power module is equipped with charging function with maximum 10 A charging current. Users can periodically increase power modules according to load expansion plan to effectively control initial cost and reduce energy consumption per unit

• Integrated power distribution

Mains input, bypass, maintenance and output breakers are integrated inside the UPS. It is easy for installation and save the cost of users

• High power density

Modular 50 is featured with high power density of 50 KVA / 3U power module

• Front accessible maintenance, top / bottom cable entry compatible ( 200KVA top cable entry )
• Self-aging function make it easier to debug and test on site
• Standard configuration with parallel port and BSC port

High availability

• Ultra wide input voltage range and frequency

Modular 50 has a wide input voltage range (138 ~ 485Vac) and frequency range (40 ~ 70 Hz). It provides 50 Hz / 60Hz frequency auto-sense and two modes of frequency conversion: 50Hz input / 60Hz output and 60Hz input / 50Hz output

• High output power factor 0.9

Output power factor 0.9 enables UPS to deliver more power and increase the load capacity

• Flexible battery quantity settings

The battery quantity (30 ~ 46 pcs) can be configured flexibly. If there is battery failure, only removing the failed battery and resetting the battery quantity are required, no need to replace the whole group of battery

• Cold start

Battery cold start is available. In the absence of mains power, battery cold start function allows users to start the UPS with the batteries to meet the emergency

• Share battery pack in parallel operation, saving user’s battery cost
• Soft-start technology improves generator matching up to 1:1.1
• Standard Emergency Power Off (EPO)
• Standard maintenance bypass switch

High intelligence

• Advanced multi-platform communications: standard USB / RS485 / dry contacts and SNMP communication interfaces
• Advanced intelligent battery management function: flexible battery configuration (30 / 32 / 34 / 36 / 38 / 40 / 42 / 44 / 46 pcs selectable), intelligent charging / discharging and float charging voltage temperature compensation

Download Sheet

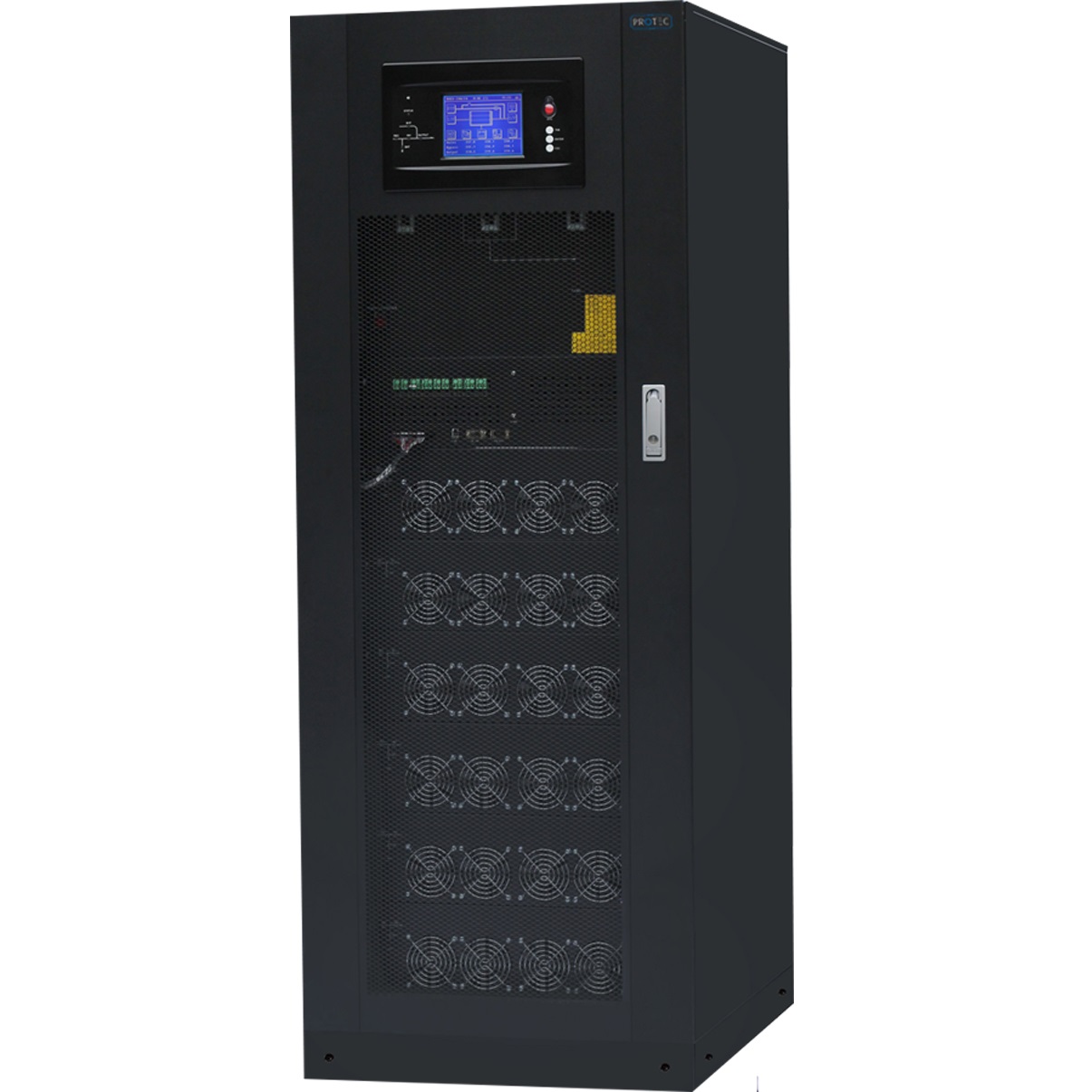

High Frequency

online double-conversion with DSP control

kVA = kW

Thanks to the unity power factor to guarantee maximum real power

Hot Swappable

operation for all modules

Inbuilt Integrated PDU system

easy installation and economic initial investment

Wide Input Voltage Range

50Hz / 60Hz auto sensing frequency

Support Two Modes of Frequency Conversion

50Hz input / 60Hz output and 60Hz input / 50Hz output

Input & Output

Input Power Factor > 0.99, Input THDi ≤ 3%, Output THDV ≤ 5%

Advanced N+X Wireless Parallel

and redundancy technology easily set up different numbers of redundancy UPS module via LCD

Inbuilt Battery Module Available

40 x 12V/9AH for each module

Share Battery Pack

in parallel operation, saving user’s battery cost

System Capacity

up to 160KVA/160KW constructed by each module 20KVA / 20KW, single charger module be equipped with 30 A charging current, 4 modules be configured maximally

Flexible Charger Parameter

and battery configuration setting, selectable battery number: 32 pcs / 34 pcs / 36pcs / 38 pcs / 40 pcs

Advanced Intelligent Battery Management Technique

prolong the working life of battery effectively

Support Battery Cold Start

and mains auto restart

Complete Isolation

between key components and air duct effectively improve the system reliability

Easily Replacable

Fragile Components can be replaced easily as modules at low maintenance cost

Front Accessible Maintenance

top / bottom cable entry compatible

Perfect Protection

for hardware and software (C class lighting protection, circuit breaker, fuse, software and hardware protection), robust self detection, abundant event log for future check

LCD Touch Screen

5.7 inches LCD touch screen, friendly human machine interaction

Standard Emergency Power Off (EPO)
Communication Port

Standard RS232 / USB / RS485 / Dry Contacts Communication Port
Optional SNMP communication port

Optional Battery Temperature Compensation

MODEL
Capacity		160 KW / 160 KVA
Numbers of parallel module		1 ~ 8
Numbers of redundancy module		0 ~ 7
UPS power module		20KVA / 20KW
INPUT
Rated voltage		380V/400V/415Vac
Voltage range		204 ~ 242 Vac (load ≤ 50%); 242 ~ 277 Vac (50% < load ≤ 70%); 277 ~ 520 Vac (70% < load ≤ 100%)
Rated frequency		50 / 60 Hz (auto-sense)
Frequency range		40 ~ 70 Hz
Power factor		≥ 0.99
Total harmonic distortion (THDI)		≤ 3%
Bypass voltage range		Rated output voltage - 40% ~ rated output voltage + 20% (settable via LCD)
OUTPUT
Voltage		380V / 400V / 415 Vac
Voltage regulation		± 1%
Frequency		Synchronized with utility in mains mode; 50 / 60Hz ± 0.1% in battery mode
Power factor		1.0
Waveform		Pure sine wave
Crest factor		3:1
Total harmonic distortion(THDV)		≤ 1% (linear load); ≤ 5% (non-linear load)
Transfer time		0ms
Inverter overload capability		110% ~ 130%: transfer to bypass in 10 mins; 130% ~ 150%: transfer to bypass in 1 min; > 150%: transfer to bypass in 0.5 s
Bypass overload capability		≤ 150%: long time running > 150%: power off in 10s
BATTERIES
DC voltage		± 240 Vdc (options: ± 192 Vdc / ± 204 Vdc / ± 216 Vdc / ± 228 Vdc)
Inbuilt battery of standard model		40 x 12V/9Ah for each module
Charging current		1 ~ 30A / 60A (settable via LCD)
SYSTEM
Efficiency		≥ 94%
Display panel		5.7 Inches LCD touch screen
Alarm		Battery mode, low battery, fans fault etc.
EMI		EN62040-2
EMS		IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge)
COMMUNICATIONS
RS232 / RS485 / USB / dry contacts (standard)		Supports Windows® 98/2000/2003/XP/Vista/2008/7/8/10
SNMP (option)		Power management from SNMP manager and web browser
OTHERS
Humidity		0 ~ 95% RH @ 0 ~ 40°C (non-condensing)
Noise level		≤ 60dB
Module dimensions (mm) WxDxH		482x590x131
Module weight		28kg / power module, 27kg / charger module, 7kg / monitoring module
UPS dimensions (mm) WxDxH		600x1000x2000
UPS packaged dimensions (mm) WxDxH		700x1070x2160
UPS Net/Gross weight (kg) Without inbuilt battery and power module		290 / 310
Input / output / bypass breaker		Yes

Ultra-wide Input Voltage Range

138-485Vac ultra-wide input voltage range, suitable for the worst power grid

Redundant Design

for modules, elimination of the single point of failure

iPower Pre-warnings

for key components in case of power supply interruption

High Efficiency

up to 96.5% at most frequently-used load rate, reducing power consumption of UPS and cooling efficiency

Intelligent Hibernation Technology

ensures efficient UPS operation

Hot Swappable Power Module

Hot swappable power module, bypass module and control module, simple maintenance and expansion in 5 minutes

iPower Real Time Monitoring System

for UPS, PDU and batteries, elimination of manual routing inspection

MODEL
Rated capacity		125KW / 125KVA
Numbers of power modules		5
MAINS INPUT
Input wiring		3Ph+N+PE
Rated voltage		380/400/415Vac
Voltage range		138 ~ 485Vac
Input frequency		40 ~ 70Hz
Total harmonic distortion		THDi < 3% for linear load
Input power factor		0.99
BYPASS INPUT
Input wiring		3Ph+N+PE
Rated voltage		380/400/415Vac
Input frequency		50/60 ±6Hz
BATTERIES
Rated voltage		360~480Vdc
OUTPUT
Output wiring		3Ph+N+PE
Voltage		380/400/415Vac ±1%
Frequency		Tracking the bypass input (Normal mode) ; 50/60Hz ±0.05% (Battery mode)
Waveform		Sine wave (THDv < 1% for linear load)
Output power factor		1
Overload capacity		Inverter: 110% overload for 60 minutes ; 125% overload for 10 minutes ; 150% overload for 1 minute
Efficiency		Up to 96.5%
Environment
Operating temperature		0 ~ 40°C
Strong temperature		-40 ~ 70°C
Relative humidity		0% ~ 95% (No condensing)
Operating altitude		0 ~ 1000m. Above 1000m, derating rate based on EN/IEC 62040-3
Others
Dimensions (H x W x D) (mm)		2000 x 600 x 850
Weight		279kg
Certifications		EN/IEC 62040-1 ; EN/IEC 62040-2 ; EN/IEC 62040-3 ; CE ; CB ; RoHS ; REACH ; WEEE ; etc
Communications		Dry contacts, RS485, SNMP

DSP Digital Control Technology
Pure Sine Wave Double Conversion

with strong load capacity

Flexible Modularity

and easy scalability with all hot-swappable module design

High Efficiency Operation

Keep high efficiency operation at low load rate: 96% at 40% rated load and 95% at 20% rated load

High Power Density

of 50 KVA / 3U power module

500 KVA System Only 1.02 m2 Footprint
Inbuilt Integrated PDU System

easy installation and saving investment

Input

Input power factor > 0.99, THDi < 3%, environment friendly and high-efficiency and energy-saving

Wide Input Voltage Range

50 Hz / 60 Hz frequency auto-sense, adapt to all kind of grid

Soft-start Technology

improves generator matching up to 1:1.1

Support Two Modes of Frequency Conversion

50 Hz input / 60 Hz output and 60 Hz input / 50 Hz output

Intelligent Hibernation Design

enable UPS to operate efficiently at low load rate

Advanced Parallel Expansion Technology

support 4 units in parallel

Battery Pack

Share battery pack in parallel operation, saving user’s battery cost

Flexible Charger Parameter

and battery configuration setting, battery number 30 ~ 46 pcs selectable

Intelligent Battery Management

Intelligent charge / discharge management and float charging voltage temperature compensation, extending battery lifespan

Support Battery Cold Start

and utility self boot

Self-aging Function

easy debugging and test on site

Fault-tolerant Design for Fan System

30% load can be driven when 2 fans fail and 50% load when 1 fan fails

Front Accessible Maintenance

top / bottom cable entry compatible

Complete Hardware and Software Protection Function

robust self-diagnostic function, and abundant event log for check

LCD Touch Screen

7 inches LCD touch screen, friendly human-machine interface

Monitoring Unit with Built-in SNMP

supports RS485 and dry contacts

MODEL
Rated capacity		180KW / 200KVA
Numbers of power modules		4
Rated capacity of power module		50KVA
INPUT
Input wiring		3Ph+N+PE
Rated voltage		380/400/415Vac
Voltage range		138 ~ 485 Vac (305 ~ 485 Vac without power downgrading; 138 ~ 305 Vac with linear downgrading 40%)
Input frequency		40 ~ 70Hz
Power factor		≥ 0.99
Current distortion		< 3%
BATTERIES
Battery voltage		± 240 Vdc (± 180, ± 192, ± 204, ± 216, ± 228, ± 252, ± 264, ± 276 selectable)
Number of battery		40 pcs12 V batteries (30 / 32 / 34 / 36 / 38 / 42 / 44 / 46 pcs selectable)
OUTPUT
Output wiring		3Ph+N+PE
Rated voltage		380 / 400 / 415 Vac ± 1%
Frequency		Synchronized with utility in mains power mode 50 Hz / 60 Hz ± 0.25% in battery mode
Power factor		0.9
Voltage distortion		≤ 1% with liner load / ≤ 3% with non-linear load
Crest factor		3:1
Inverter overload capacity		105% < load ≤ 110%: transfer to bypass in 60 mins 110% < load ≤ 125%: transfer to bypass in 10 mins 125% < load ≤ 150%: transfer to bypass in 1 min Load > 150%: transfer to bypass in 200 ms
Bypass overload capacity		Load ≤ 135% for long term; < 1000% load for 100ms
SYSTEM
Efficiency		96%
Max. number of parallel		4 units
Transfer time		0ms
Protection		Short circuit protection, overload protection, over-temperature protection, battery low voltage protection, output over/low voltage protection, fans failure protection etc.
Communications		RS485, dry contacts, SNMP
Display		7 inches LCD touch screen
OTHERS
Operating temperature		0 ~ 40°C
Storage temperature		-40°C ~ 70°C
Humidity		0 ~ 95% (non-condensing)
Altitude		≤ 1000m. Above 1000m, derating 1% for each additional 100m
Protection level		IP20
Noiselevel at 1 m		< 65 dB
Cabinet dimensions (WxDxH) (mm)		600x850x2000
UPS module dimensions (WxDxH) (mm)		442 x 620 x 130
Cabinetweight (kg)		233
UPS module weight (kg)		32
